Home » 4inch 4SP Stainless Steel Submersible Pump
Detailed description
Application:
Waltek Water Pump:
Q max: 6.8(m³/h)
Max. fluid temperature: 35℃
Max. sand content: 0.25%
Maximum diameter: Φ98mm
Motor:
Power: Single phase: 0.37-4kw 220-240v or 110-127v
Insulation class: B
Protection grade: IP68
Frequency: 50Hz or 60Hz
Specification Data:
|
Model |
Motor Power |
Head max |
Q max |
||
| Single phase 220-240V-50Hz | Three phase 380-415V-50Hz | Kw |
Hp |
m |
m³/h |
| 4SPM5/04-0.37 | 4SP5/04-0.37 | 0.37 | 0.5 | 25 | 6.5 |
| 4SPM5/06-0.55 | 4SP5/06-0.55 | 0.55 | 0.75 | 38 | 6.5 |
| 4SPM5/08-0.75 | 4SP5/08-0.75 | 0.75 | 1 | 50 | 6.5 |
| 4SPM5/12-1.1 | 4SP5/12-1.1 | 1.1 | 1.5 | 76 | 6.5 |
| 4SPM5/17-1.5 | 4SP5/17-1.5 | 1.5 | 2 | 107 | 6.5 |
| 4SPM5/22-2.2 | 4SP5/22-2.2 | 2.2 | 3 | 139 | 6.5 |
| 4SPM5/25-2.2 | 4SP5/25-2.2 | 2.2 | 3 | 158 | 6.5 |
| - | 4SP5/33-3 | 3 | 4 | 208 | 6.5 |
| - | 4SP5/40-4 | 4 | 5.5 | 252 |
6.5 |

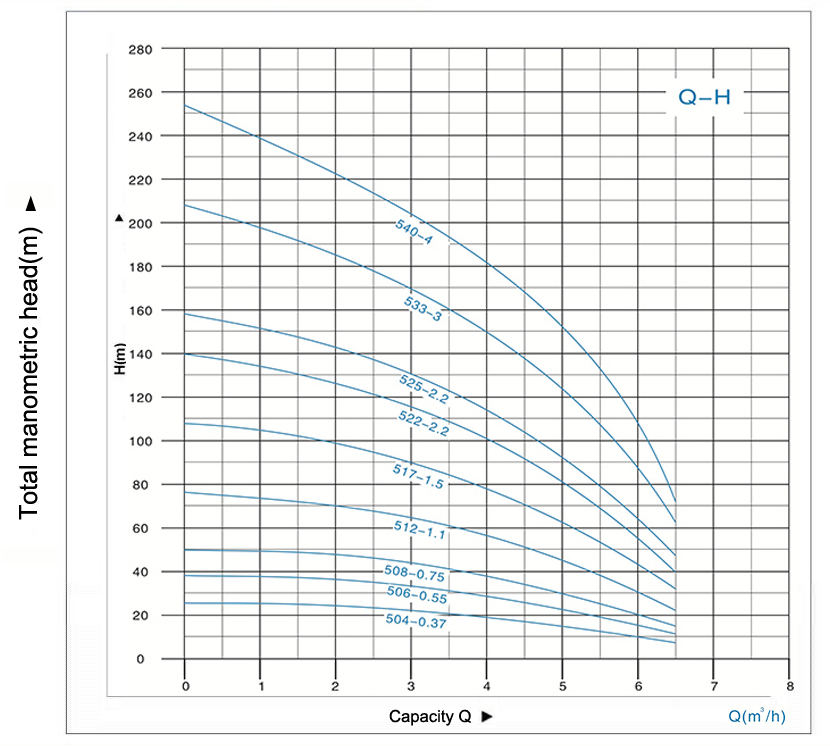

• PERFORMANCE CHART AT RMP:2850r/min Outlet:G1¼"~1½"
