 1WZB Series Centrifugal Pump
  •  1WZB Series Centrifugal Pump
  •  1WZB Series Centrifugal Pump

1WZB Series Centrifugal Pump

1WZB-35-0.37 1WZB-45-0.5
Detailed description


Application &Feature

Waltek brand there pumps are for clean water without abrasive particles and the fluids which are not chemically aggressive to the pump componets.

There are used for domostic applicance and automatic distribution of water form surge tanks .for watering gardens and for boosting insufficent mains water pressure.



Working Conditions

  •  Suction lift up to 9 m.
  •  Liquid temperature up to +40℃.
  •  Ambient temperature up to +40℃.
  •  Max. Working pressure: 5 bar.



Motor

  •  Single phase two-pole induction motor.
  •  220V/50Hz  220V/60Hz 100V/60Hz
  •  Thermal Protector,continuous duty.
  • Insulation class:B
  •  Protection: IP 44.

SPECIFICATION DATA:

Model Power

Inlet

Dia.

Outlet

Dia.

Performance Data

Single Phase

220V/240V

KW HP

H.max

(m)

Q.max

(L/min)

Suck Head

(m)

1WZB-35 0.37 0.5 1" 1" 30 40 9
1WZB-45 0.55 0.75 1" 1" 40 50 9
1WZB-65 0.75 1 1" 1" 50 60 9

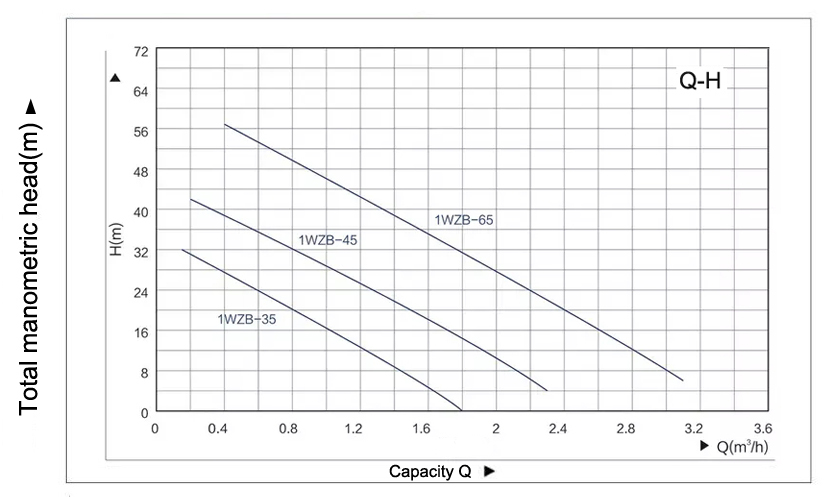

PERFORMANCE CHART AT   RMP=2850r/min     Outlet:G1"
