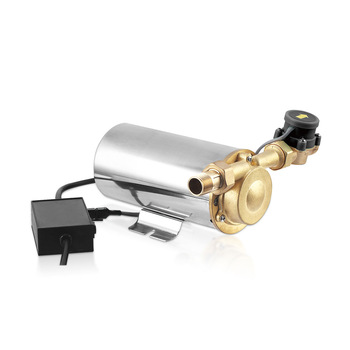

It is a circulating pump designed for pressure boosting of water in domestic properties. The pump provides additional pressure to showers, tapes and similar outlet points for domestic water. The pump connects a flow switch which starts and stops the pump when a tape is turned on or off.

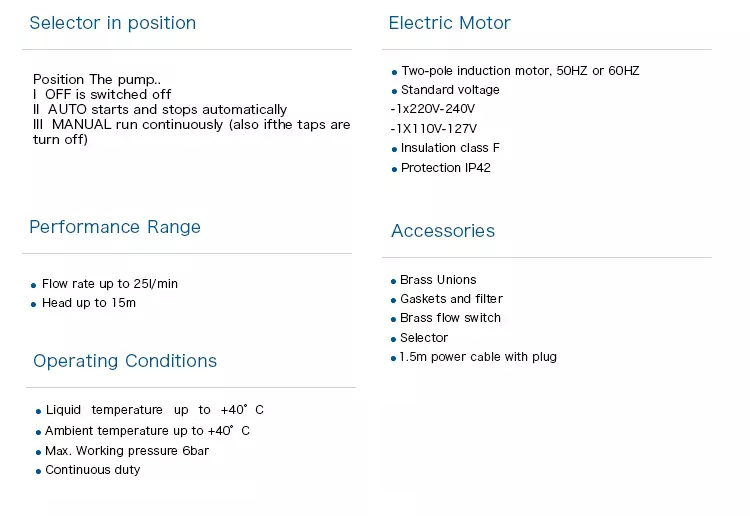

The waltek circulation pump selector can be set to the positions OFF, AUTO and MANUAL When the selector is in the position MANUAL, at least one tap must be open. Otherwise the pumped liquid may over heat.
Model No.#
Voltage
Power
Inlet/Ourlet
Head
Flow
Speed
Cable
Auto-booster150
220~240V
150W
3/4" to 1/2"
15m
35l/min
2860rpm
1.5m
