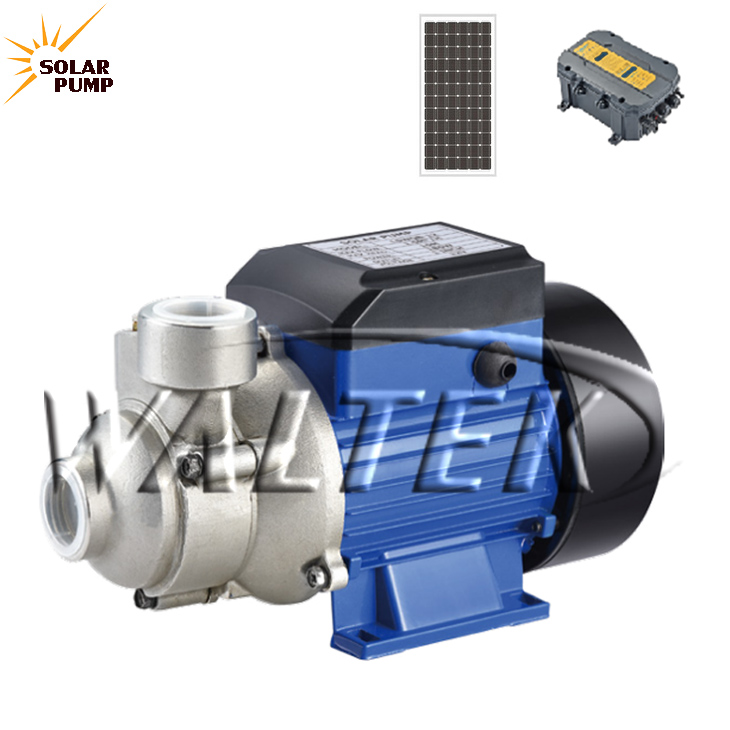

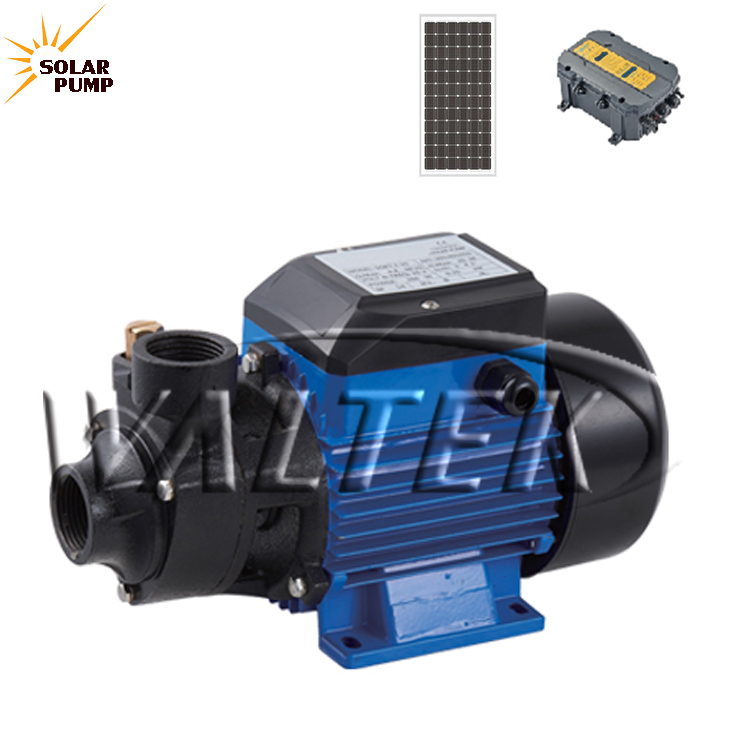

Home » DC Solar Surface QB Vortex Pump
Detailed description
Applications
Waltek SQB series peripheral water pumps are mainly used to transfer clean water or other liquid which is similar with water character. It is suitable for domestic water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
Operating conditions
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m
Continuous duty
Motor and Pump
Heavy Duty Continuous Work
Motor Housing: Aluminum Alloy
Cast-iron type available
Inlet and Discharge (Outlet)
Material: AISI 304 SS
Shaft: AISI 304SS
Motor Stator:100% enamelled copper wire
Insulation: Class F
Protection : IP44/P54Cooling: External Ventilation
Pump Body: Cast Iron(with Brass Insert if required)
Impeller: Brass/Stainless Steel
Mechanical Seal: SIC/Ceramic/Graphite
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz

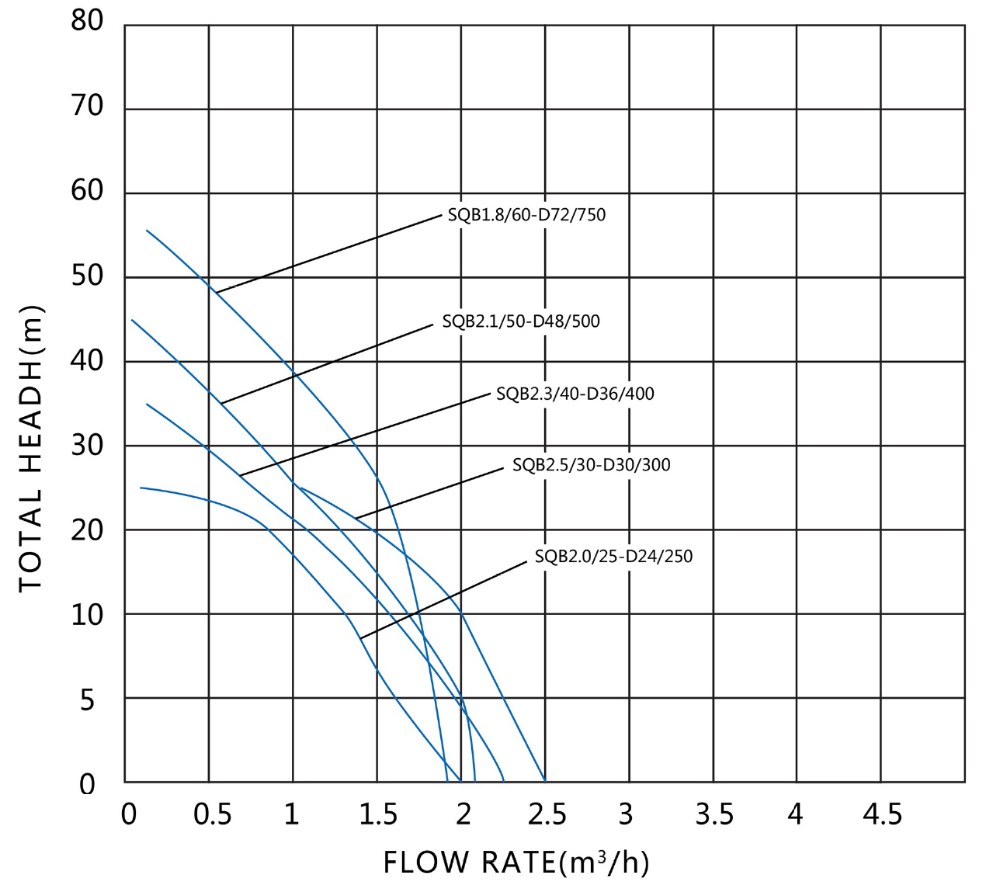

SPECIFICATION DATA:
|
No
|
Voltage
|
Power
|
Model
|
Outlet/
Inlet Size
|
Max.Head
|
Max. Suction
|
Max. Flow
|
|
|
Vdc
|
Watt
|
HP
|
Inch
|
Mtrs.
|
Mtrs.
|
m3/hr
|
||
|
01
|
24
|
250
|
0.3
|
SQB2.0/25-D24/250
|
1
|
25
|
8
|
2.0
|
|
02
|
30
|
300
|
0.4
|
SQB2.5/30-D30/300
|
1
|
30
|
8
|
2.5
|
|
03
|
36
|
400
|
0.5
|
SQB2.3/40-D36/400
|
1
|
40
|
8
|
2.3
|
|
04
|
48
|
500
|
0.7
|
SQB2.1/50-D48/500
|
1
|
50
|
8
|
2.1
|
|
05
|
72
|
750
|
1.0
|
SQB1.8/60-D72/750
|
1
|
60
|
8
|
1.8
|
