Application:
For transferring luquid of low viscosity,non-inflammable and non-explosive,not contain solid particles or fibers;
For water supply and drainage for high rise buildings,filtration and transfer at waterworks,pressure boosting in main pipe;
For washing and cleaning systems,boiler feeding,cooling water circulation,water treatment systems,auxiliary systems,support equipment;
For domestic use,for civil and industrial application,for garden use and irrigation.
Pump:
Q max: 0.5-250(m³/h)
Max. fluid temperature:-20℃ to +120℃
Ambient temperature up to +40℃
Max. Working pressure 33bar
Continuous duty
Motor:
Power: Single phase: 0.75-2.2kw 1PH 220-240v or 3PH 380V-415v
Insulation class: F
Protection grade: IP55
Frequency: 50Hz or 60Hz
• Specification Data:
Model
H.Max
Q.Max
Motor Power
Speed
（m）
（m3/h）
（KW）
（r/min）
CDLF1-2
11.5
1
0.37
2900
CDLF1-3
17
1
0.37
2900
CDLF1-4
22.5
1
0.37
2900
CDLF1-5
28
1
0.37
2900
CDLF1-6
33.5
1
0.37
2900
CDLF1-7
39
1
0.37
2900
CDLF1-8
45
1
0.55
2900
CDLF1-9
51
1
0.55
2900
CDLF1-10
57
1
0.55
2900
CDLF1-17
95
1
1.1
2900
CDLF1-19
106
1
1.1
2900
CDLF1-21
117
1
1.1
2900
CDLF1-23
128
1
1.1
2900
CDLF1-25
139
1
1.5
2900
CDLF1-27
150
1
1.5
2900
CDLF1-30
166
1
1.5
2900
CDLF1-33
183
1
2.2
2900
CDLF1-36
200
1
2.2
2900
CDLF2-2
15
2
0.37
2900
CDLF2-3
22
2
0.37
2900
CDLF2-4
30
2
0.55
2900
CDLF2-5
37
2
0.55
2900
CDLF2-6
45
2
0.75
2900
CDLF2-7
52
2
0.75
2900
CDLF2-9
67
2
1.1
2900
CDLF2-11
82
2
1.1
2900
CDLF2-13
98
2
1.5
2900
CDLF2-15
112
2
1.5
2900
CDLF2-18
136
2
2.2
2900
CDLF2-22
165
2
2.2
2900
CDLF2-26
198
2
3.0
2900
CDLF3-2
9
3
0.37
2900
CDLF3-3
14
3
0.37
2900
CDLF3-4
19
3
0.37
2900
CDLF3-5
23
3
0.37
2900
CDLF3-6
28
3
0.55
2900
CDLF3-7
32
3
0.55
2900
CDLF3-8
37
3
0.75
2900
CDLF3-9
42
3
0.75
2900
CDLF3-10
47
3
0.75
2900
CDLF3-11
51
3
1.1
2900
CDLF3-12
55
3
1.1
2900
CDLF3-13
60
3
1.1
2900
CDLF3-15
69
3
1.1
2900
CDLF3-17
79
3
1.5
2900
CDLF3-19
88
3
1.5
2900
CDLF3-21
98
3
2.2
2900
CDLF3-23
107
3
2.2
2900
CDLF3-25
116
3
2.2
2900
CDLF3-27
124
3
2.2
2900
CDLF3-29
133
3
2.2
2900
CDLF3-31
142
3
3
2900
CDLF3-33
151
3
3
2900
CDLF3-36
168
3
3
2900
CDLF4-2
15
4
0.37
2900
CDLF4-3
24
4
0.55
2900
CDLF4-4
32
4
0.75
2900
CDLF4-5
40
4
1.1
2900
CDLF4-6
48
4
1.1
2900
CDLF4-7
56
4
1.5
2900
CDLF4-8
64
4
1.5
2900
CDLF4-10
81
4
2.2
2900
CDLF4-12
95
4
2.2
2900
CDLF4-14
112
4
3
2900
CDLF4-16
129
4
3
2900
CDLF4-19
153
4
4
2900
CDLF4-22
178
4
4
2900
CDLF8-2/1
9
8
0.75
2900
CDLF8-2
18
8
0.75
2900
CDLF8-3
27
8
1.1
2900
CDLF8-4
36
8
1.5
2900
CDLF8-5
45
8
2.2
2900
CDLF8-6
54
8
2.2
2900
CDLF8-8
73
8
3.0
2900
CDLF8-10
92
8
4.0
2900
CDLF8-12
111
8
4.0
2900
CDLF8-14
130
8
5.5
2900
CDLF8-16
148
8
5.5
2900
CDLF8-18
167
8
7.5
2900
CDLF8-20
186
8
7.5
2900
CDLF12-2
20
12
1.5
2900
CDLF12-3
30
12
2.2
2900
CDLF12-4
40
12
3
2900
CDLF12-5
50
12
3
2900
CDLF12-6
60
12
4
2900
CDLF12-7
70
12
5.5
2900
CDLF12-8
80
12
5.5
2900
CDLF12-9
91
12
5.5
2900
CDLF12-10
101
12
7.5
2900
CDLF12-12
121
12
7.5
2900
CDLF12-14
141
12
11
2900
CDLF12-16
162
12
11
2900
CDLF12-18
183
12
11
2900
CDLF16-2
22
16
2.2
2900
CDLF16-3
34
16
3.0
2900
CDLF16-4
46
16
4.0
2900
CDLF16-5
58
16
5.5
2900
CDLF16-6
70
16
5.5
2900
CDLF16-7
82
16
7.5
2900
CDLF16-8
94
16
7.5
2900
CDLF16-10
118
16
11
2900
CDLF16-12
141
16
11
2900
CDLF16-14
166
16
15
2900
CDLF16-16
189
16
15
2900
CDLF20-1
10
20
1.1
2900
CDLF20-2
23
20
2.2
2900
CDLF20-3
35
20
4.0
2900
CDLF20-4
47
20
5.5
2900
CDLF20-5
58
20
5.5
2900
CDLF20-6
70
20
7.5
2900
CDLF20-7
82
20
7.5
2900
CDLF20-8
94
20
11
2900
CDLF20-10
118
20
11
2900
CDLF20-12
142
20
15
2900
CDLF20-14
166
20
15
2900
CDLF20-17
202
20
18.5
2900
CDLF32-10-1
9
32
1.5
2900
CDLF32-10
13
32
2.2
2900
CDLF32-20-2
20
32
3.0
2900
CDLF32-20
27
32
4.0
2900
CDLF32-30-2
33
32
5.5
2900
CDLF32-30
40
32
5.5
2900
CDLF32-40-2
46
32
7.5
2900
CDLF32-40
53
32
7.5
2900
CDLF32-50-2
60
32
11
2900
CDLF32-50
67
32
11
2900
CDLF32-60-2
74
32
11
2900
CDLF32-60
81
32
11
2900
CDLF32-70-2
88
32
15
2900
CDLF32-70
95
32
15
2900
CDLF32-80-2
102
32
15
2900
CDLF32-80
109
32
15
2900
CDLF32-90-2
117
32
18.5
2900
CDLF32-90
124
32
18.5
2900
CDLF32-100-2
131
32
18.5
2900
CDLF32-100
138
32
18.5
2900
CDLF32-110-2
146
32
22
2900
CDLF32-110
153
32
22
2900
CDLF32-120-2
160
32
22
2900
CDLF32-120
167
32
22
2900
CDLF32-130-2
174
32
30
2900
CDLF32-130
181
32
30
2900
CDLF32-140-2
189
32
30
2900
CDLF32-140
196
32
30
2900
CDLF42-10-1
16
42
3.0
2900
CDLF42-10
20
42
4.0
2900
CDLF42-20-2
32
42
5.5
2900
CDLF42-20
41
42
7.5
2900
CDLF42-30-2
52
42
11
2900
CDLF42-30
61
42
11
2900
CDLF42-40-2
73
42
15
2900
CDLF42-40
81
42
15
2900
CDLF42-50-2
93
42
18.5
2900
CDLF42-50
101
42
18.5
2900
CDLF42-60-2
113
42
22
2900
CDLF42-60
122
42
22
2900
CDLF42-70-2
134
42
30
2900
CDLF42-70
142
42
30
2900
CDLF42-80-2
154
42
30
2900
CDLF42-80
162
42
30
2900
CDLF42-90-2
174
42
30
2900
CDLF42-90
183
42
37
2900
CDLF42-100-2
194
42
37
2900
CDLF42-100
203
42
37
2900
CDLF42-110-2
217
42
45
2900
CDLF42-110
225
42
45
2900
CDLF42-120-2
238
42
45
2900
CDLF42-120
247
42
45
2900
CDL42-130-2
259
42
45
2900
CDL65-10-1
13
65
4.0
2900
CDL65-10
20
65
5.5
2900
CDL65-20-2
26
65
7.5
2900
CDL65-20-1
33
65
11
2900
CDL65-20
40
65
11
2900
CDL65-30-2
46
65
15
2900
CDL65-30-1
53
65
15
2900
CDL65-30
60
65
18.5
2900
CDL65-40-2
66
65
18.5
2900
CDL65-40-1
73
65
22
2900
CDL65-40
80
65
22
2900
CDL65-50-2
88
65
30
2900
CDL65-50-1
95
65
30
2900
CDL65-50
102
65
30
2900
CDL65-60-2
110
65
30
2900
CDL65-60-1
117
65
37
2900
CDL65-60
124
65
37
2900
CDL65-70-2
132
65
37
2900
CDL65-70-1
139
65
37
2900
CDL65-70
146
65
45
2900
CDL65-80-2
154
65
45
2900
CDL65-80-1
161
65
45
2900
CDL85-10-1
14
85
5.5
2900
CDL85-10
20
85
7.5
2900
CDL85-20-2
30
85
11
2900
CDL85-20
41
85
15
2900
CDL85-30-2
52
85
18.5
2900
CDL85-30
64
85
22
2900
CDL85-40-2
75
85
30
2900
CDL85-40
86
85
30
2900
CDL85-50-2
98
85
37
2900
CDL85-50
110
85
37
2900
CDL85-60-2
122
85
45
2900
CDL85-60
134
85
45
2900
CDL120-10
18.5
120
11
2950
CDL120-20-1
34.5
120
18.5
2950
CDL120-20
40
120
22
2950
CDL120-30
61
120
30
2950
CDL120-40-1
76
120
37
2950
CDL120-50-1
97
120
45
2950
CDL120-60-1
118
120
55
2950
CDL120-70
145
120
75
2950
CDL150-10-1
12.5
150
11
2950
CDL150-10
18.5
150
15
2950
CDL150-20-1
35
150
22
2950
CDL150-30-2
49
150
30
2950
CDL150-30
63
150
37
2950
CDL150-40-1
77
150
45
2950
CDL150-50-2
92
150
55
2950
CDL150-60
130
150
75
2950

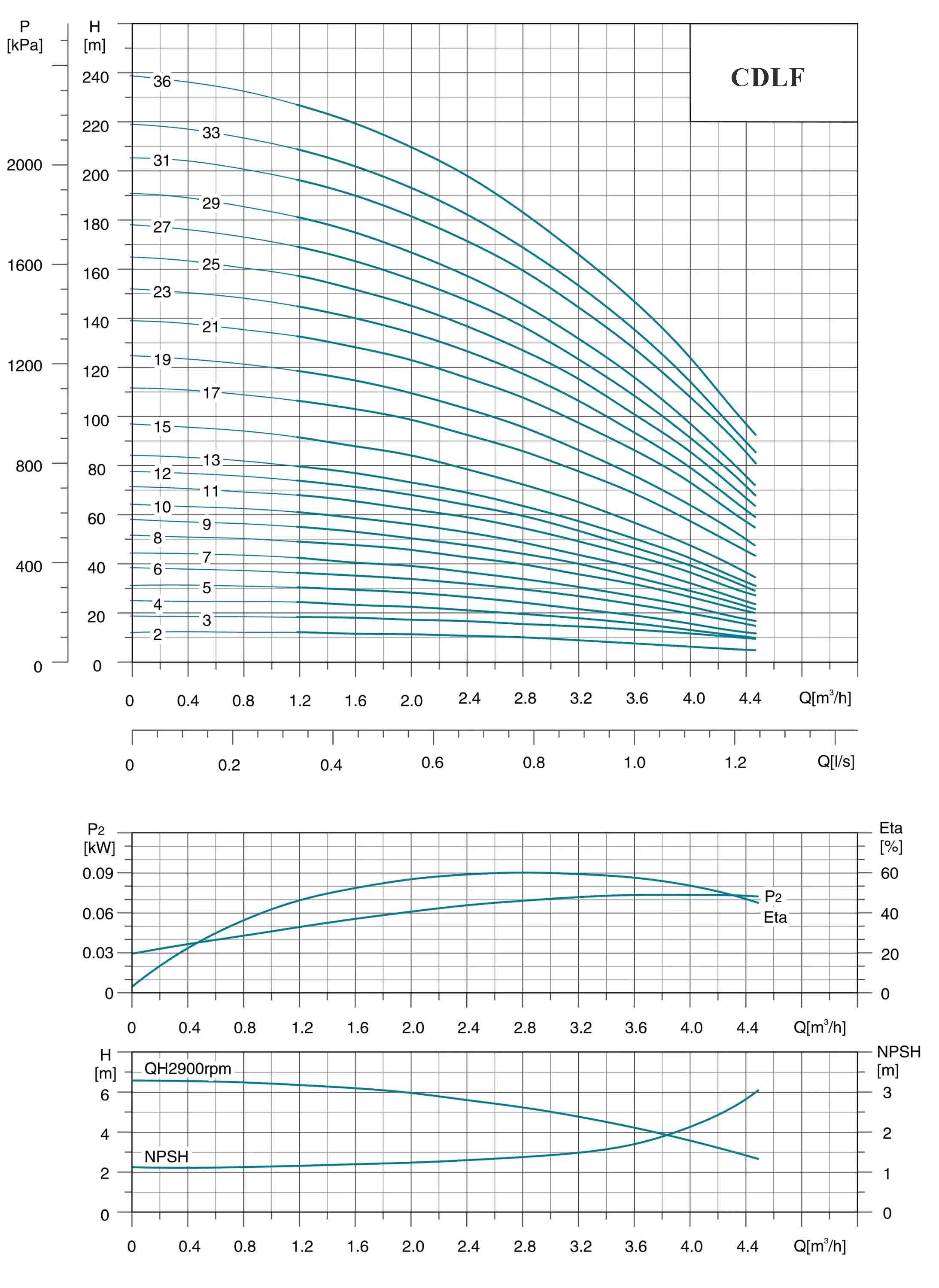

• PERFORMANCE CHART AT RMP=2900r/min
