Home » Self-priming Automatic Boost JET Water Pump
Detailed description
Applications

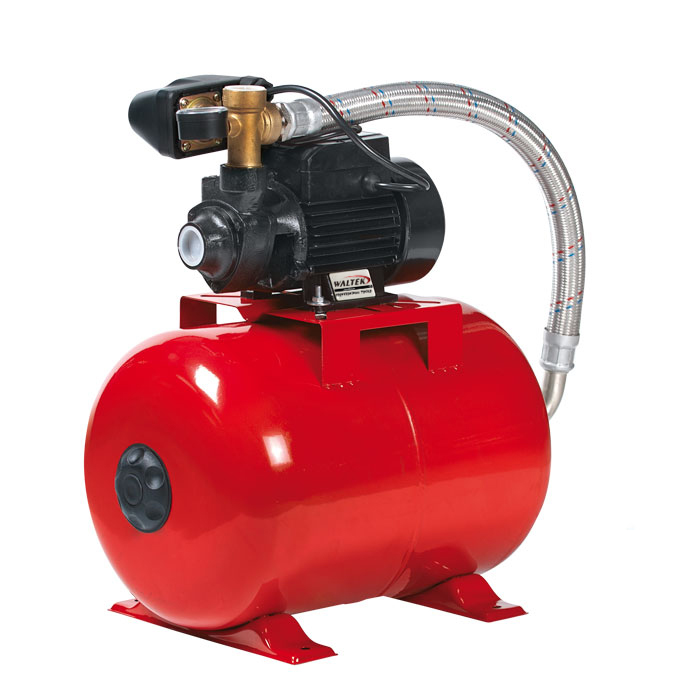

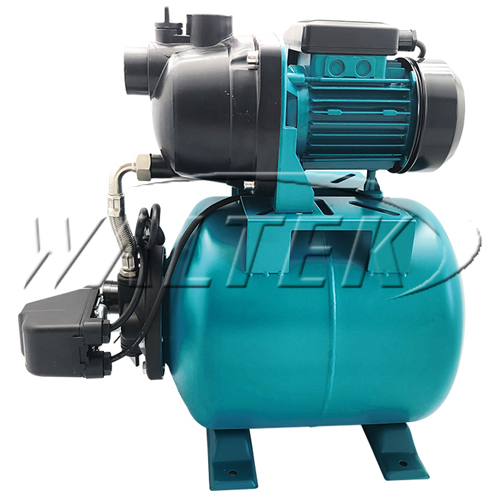

Waltek Self-priming Automatic Boost Jet Water Pump
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Operating Conditions
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
Specification Data:
| Model | Power | DN1 |
DN2 |
Performance Data | |||
|
1~ 220V/240V |
KW | HP |
H.max (m) |
Q.max (L/min) |
Suck Head (m) |
||
| JETBOOST-60 | 0.37 | 0.5 | 1" | 1" | 40 | 37 | 9 |
| JETBOOST-80 | 0.55 | 0.75 | 1" | 1" | 43 | 46 | 9 |
| JETBOOST-100 | 0.75 | 1.0 | 1" | 1" | 48 | 88 | 9 |
| JETBOOST-150 | 1.1 | 1.5 | 1.25" | 1" | 52 | 100 | 9 |
