Detailed description

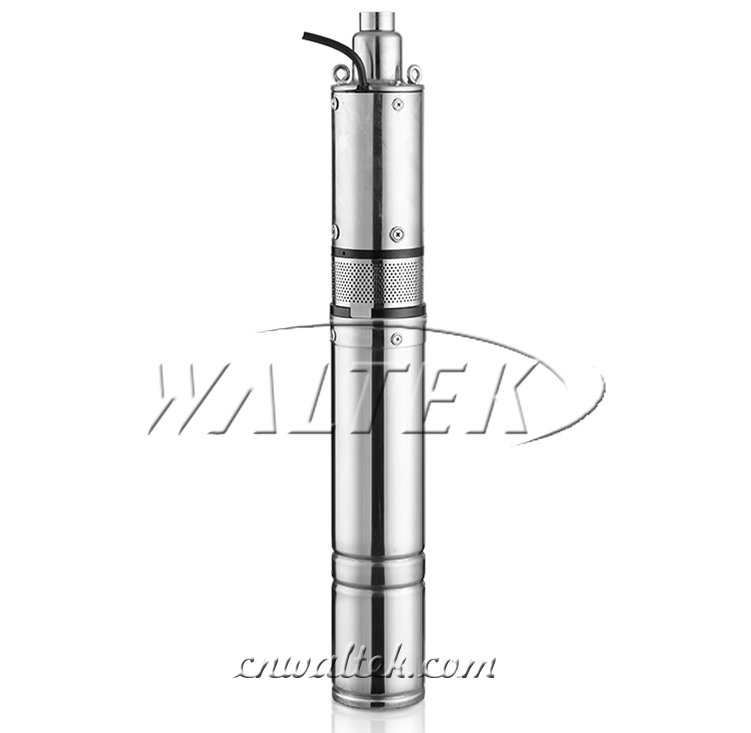

Waltek 4QGD Screw Submersible Water Pump
Application:
Pump:
Q max: 3.6(m³/h)
Max. fluid temperature: 35℃
Max. sand content: 0.25%
Maximum diameter: Φ95mm
Motor:
Power: Single phase: 0.37-1.1kw 220-240v or 110-127v
Insulation class: B
Protection grade: IP68
Frequency: 50Hz or 60Hz
Specification Data:
|
Model |
Motor Power |
Head max |
Q max |
|
| Voltage 220V | kW |
Hp |
m |
m³/h |
| QGD1.2-50-0.37 | 0.37 | 0.5 | 80 | 1.8 |
| QGD1.8-50-0.50 | 0.5 | 0.67 | 80 | 2.5 |
| QGD1.2-100-0.75 | 0.75 | 1 | 130 | 1.8 |
| QGD2.5-60-0.75 | 0.75 | 1 | 80 | 2.6 |
| QGD1.5-120-1.1 | 1.1 | 1.5 | 140 | 2.3 |
| QGD1.8-100-1.1 | 1.1 | 1.5 | 140 |
2.3 |

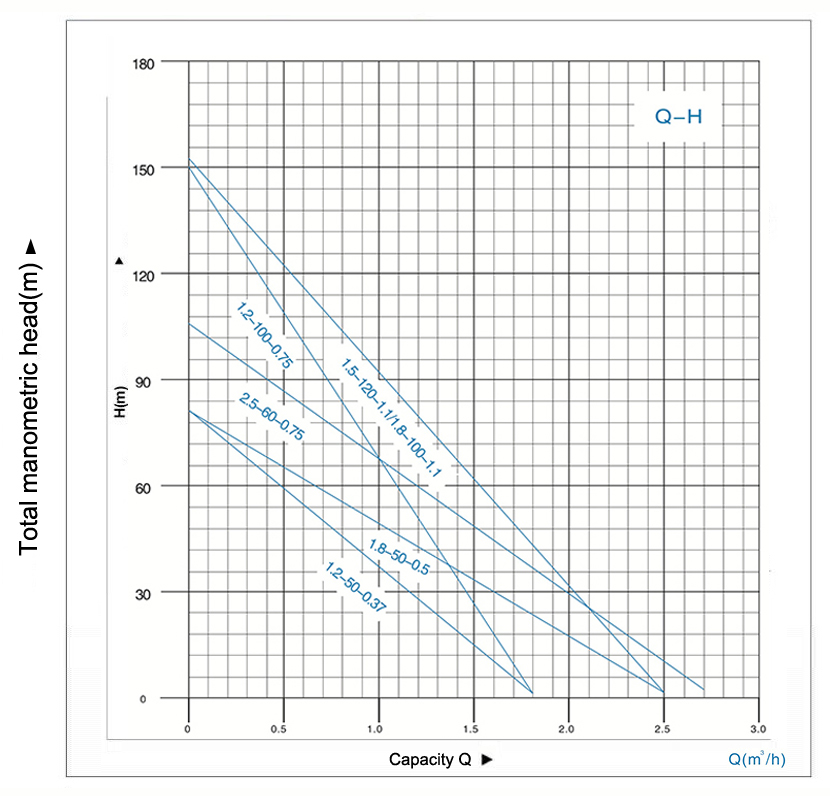

• PERFORMANCE CHART AT RMP:2850r/min Outlet:G1"
