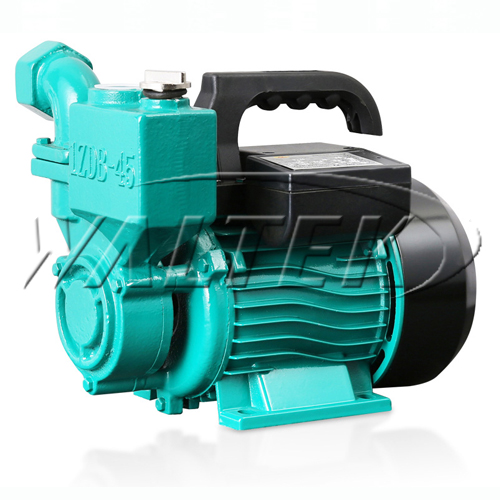

Home » 1WZB Series Centrifugal Pump
Detailed description
Application &Feature
There pumps are for clean water without abrasive particles and the fluids which are not chemically aggressive to the pump componets.
There are used for domostic applicance and automatic distribution of water form surge tanks .for watering gardens and for boosting insufficent mains water pressure.
Working Conditions
- Suction lift up to 9 m.
- Liquid temperature up to +40℃.
- Ambient temperature up to +40℃.
- Max. Working pressure: 5 bar.
Motor
- Single phase two-pole induction motor.
- 220V/50Hz 220V/60Hz 100V/60Hz
- Thermal Protector,continuous duty.
- Insulation class:B
- Protection: IP 44.
SPECIFICATION DATA:
| Model | Power |
Inlet Dia. |
Outlet Dia. |
Performance Data |
|||
|
Single Phase 220V/240V |
KW | HP |
H.max (m) |
Q.max (L/min) |
Suck Head (m) |
||
| 1WZB-35 | 0.37 | 0.5 | 1" | 1" | 30 | 40 | 9 |
| 1WZB-45 | 0.55 | 0.75 | 1" | 1" | 40 | 50 | 9 |
| 1WZB-65 | 0.75 | 1 | 1" | 1" | 50 | 60 | 9 |
PERFORMANCE CHART AT RMP=2850r/min Outlet:G1"
