Detailed description
Application:
Waltek Water Pump:
Q max: 4.5(m³/h)
Max. fluid temperature: 35℃
Max. sand content: 0.25%
Maximum diameter: Φ98mm
Motor:
Power: Single phase: 0.25-4kw 220-240v or 110-127v
Insulation class: B
Protection grade: IP68
Frequency: 50Hz or 60Hz
•Specification Data:
|
Model |
Motor Power |
Head max |
Q max |
||
|
1phase 220-240V- 50Hz
|
3phase 380-415V-50Hz | Kw |
Hp |
m |
m³/h |
| 4SDM2/5-0.25 | 4SD2/5-0.25 | 0.25 | 0.33 | 34 | 4.5 |
| 4SDM2/8-0.37 | 4SD2/8-0.37 | 0.37 | 0.5 | 54 | 4.5 |
| 4SDM2/11-0.55 | 4SD2/11-0.55 | 0.55 | 0.75 | 74 | 4.5 |
| 4SDM2/14-0.75 | 4SD2/14-0.75 | 0.75 | 1 | 95 | 4.5 |
| 4SDM2/19-1.1 | 4SD2/19-1.1 | 1.1 | 1.5 | 128 | 4.5 |
| 4SDM2/25-1.5 | 4SD2/25-1.5 | 1.5 | 2 | 169 | 4.5 |
| 4SDM2/30-2.2 | 4SD2/30-2.2 | 2.2 | 3 | 203 | 4.5 |
| 4SDM2/35-2.2 | 4SD2/35-2.2 | 2.2 | 3 | 237 | 4.5 |
| - | 4SD2/40-3 | 3 | 4 | 270 | 4.5 |
| - | 4SD2/45-3 | 3 | 4 | 304 | 4.5 |
| - | 4SD2/52-4 | 4 | 5.5 | 352 | 4.5 |
| - | 4SD2/60-4 | 4 | 5.5 | 406 |
4.5 |

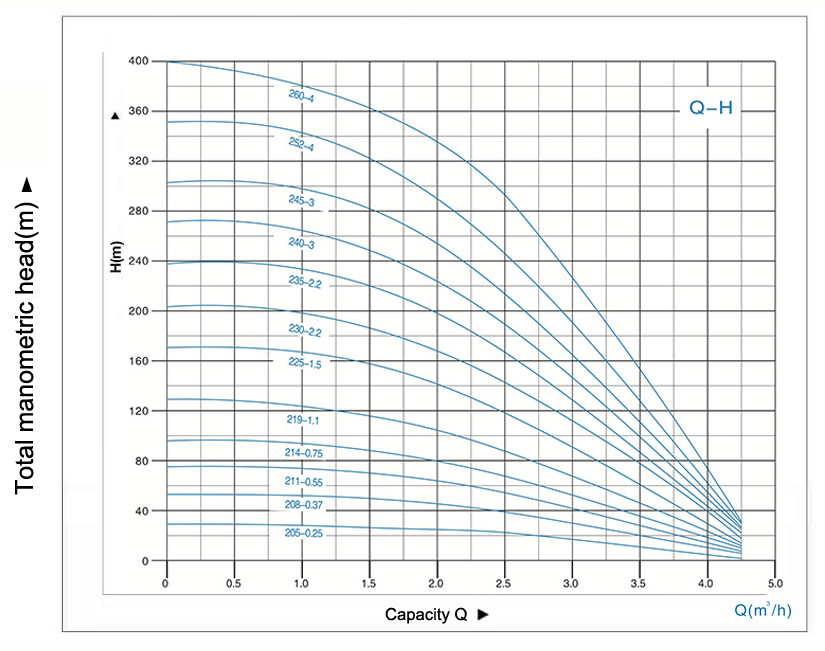

• PERFORMANCE CHART AT RMP:2850r/min Outlet:G1"~1¼"
