Applications

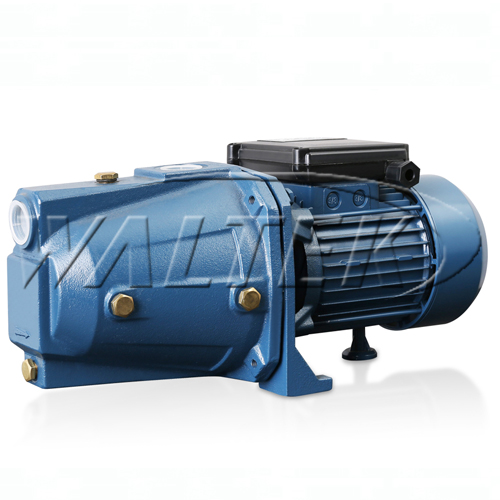

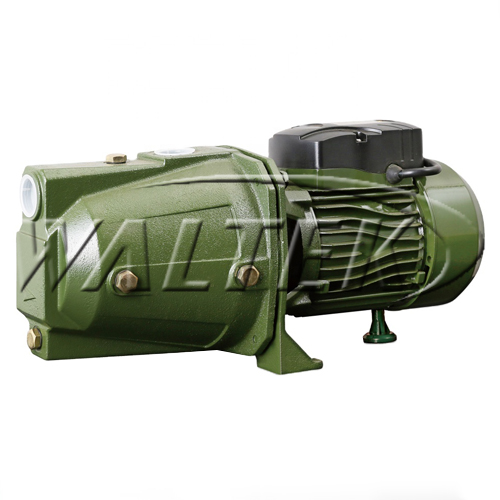

Waltek Jet Series Surface Water Pump
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Operating Conditions
Maximum fluid temperature up to +40℃.
Maximum Ambient temperature up to +40℃.
Maximum sand content:0.25%.
Maximum operating depth 15m.
Trans medium's PH:6.5~8.5.
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Pump body:Cast Iron
Pump body cover:Cast Iron
Impeller:Brass
Motor shaft:45#Steel or Stainless steel
Mechanical Seal:Ceramic-Graphite
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
Specification Data:
| Model | Power |
Inlet Dia. |
Outlet Dia. |
Performance Data | |||
|
1~ 220V/240V |
KW | HP |
H.max (m) |
Q.max (L/min) |
Suck Head (m) |
||
| JET-60L | 0.37 | 0.5 | 1" | 1" | 40 | 37 | 9 |
| JET-80L | 0.55 | 0.75 | 1" | 1" | 43 | 46 | 9 |
| JET-100L | 0.75 | 1.0 | 1" | 1" | 48 | 53 | 9 |
| JET-150L | 1.1 | 1.5 | 1.25" | 1" | 52 | 65 | 9 |

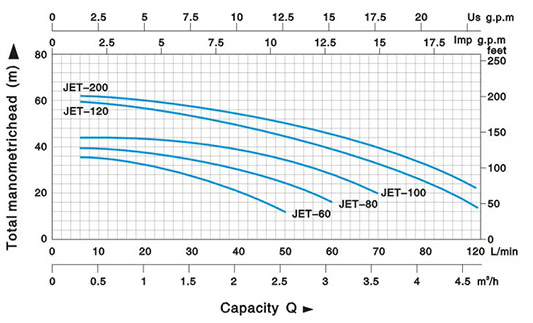

PERFORMANCE CHART AT RMP=2850r/min Outlet:G1"
