Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Operating Conditions
Suction head up to 9m.
Maximum fluid temperature up to +40℃.
Maximum ambient temperature up to +40℃
Maximum sand content:0.25%.
Trans medium's PH:6.5~8.5.
Max. Working pressure: 6bar / 87psi
Motor and Pump
Rewindable motor
Single-phase:110-127V/60Hz
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Pump body:304 Stainless Steel
Pump body cover:304 Stainless Steel
Protection Class: IP44
Insulation Class: B
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
Specification Data:
| Model | Power |
Inlet Dia. |
Outlet Dia. |

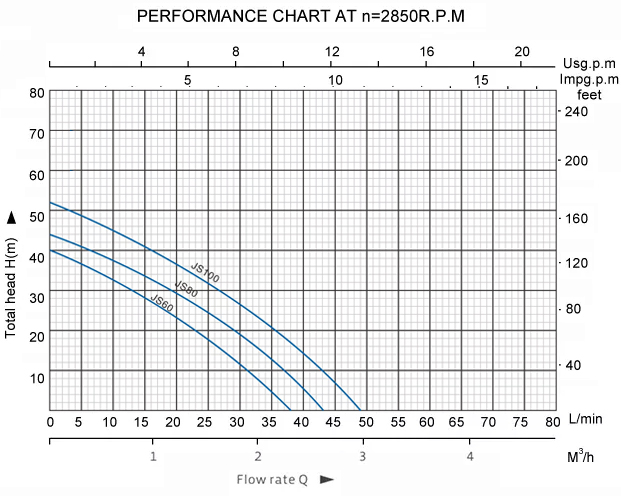

Performance Data | |||
|
1~ 220V/240V |
KW | HP |
H.max (m) |
Q.max (L/min) |
Suck Head (m) |
||
| JS-60 | 0.37 | 0.5 | 1" | 1" | 40 | 38 | 9 |
| JS-80 | 0.55 | 0.75 | 1" | 1" | 45 | 43 | 9 |
| JS-100 | 0.75 | 1.0 | 1" | 1" | 52 | 50 | 9 |
|
Remarks:110V, 115V, 127V, 110/220V, 230V, 240V, 50Hz or 60Hz can according to the customer's requirements. |
|||||||
