Applications

Waltek Self-priming Jet Series Water Pump

For water supply from wells or reservoirs.

For domestic use,for civil and industrial applications.

For garden use and irrigation.

Operating Conditions

Maximum fluid temperature up to +40℃.

Maximum sand content:0.25%.

Maximum operating depth 15m.

Trans medium's PH:6.5~8.5.

Motor and Pump

Rewindable motor

Single-phase:220V-240V/50Hz

Three-phase:380V-415V/50Hz

Pump body:Cast Iron+Aluminum House

Impeller:PPO or Brass

Motor shaft:45#Steel or Stainless steel

Mechanical Seal:Ceramic-Graphite

Protection Class: IP44
Insulation Class: B

Options on request

Special mechanical seal

Other voltages or frequency 60 Hz

SPECIFICATION DATA:

MODEL		POWER		MAX.FLOW (L/MIN)	MAX.HEAD (M)	MAX.SUCT (M)	INLET/OUTLET (IN)	GW (KG)	PACKING DIMENSION (MM)
1 phase	3 phase	KW	HP
JET-102M	JET102M-1	0.75	1	60	43	9	1''*1''	17	490*210*225

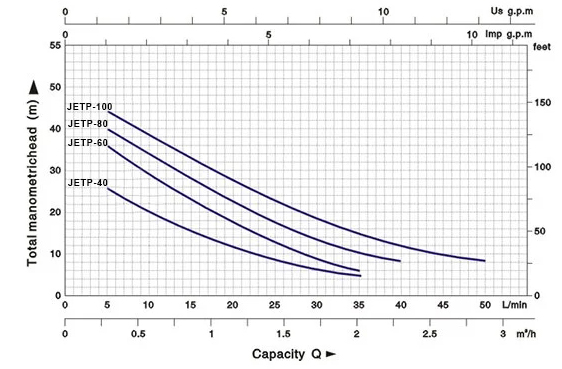

PERFORMANCE CHART AT    RMP=2850r/min      Outlet:G1"
