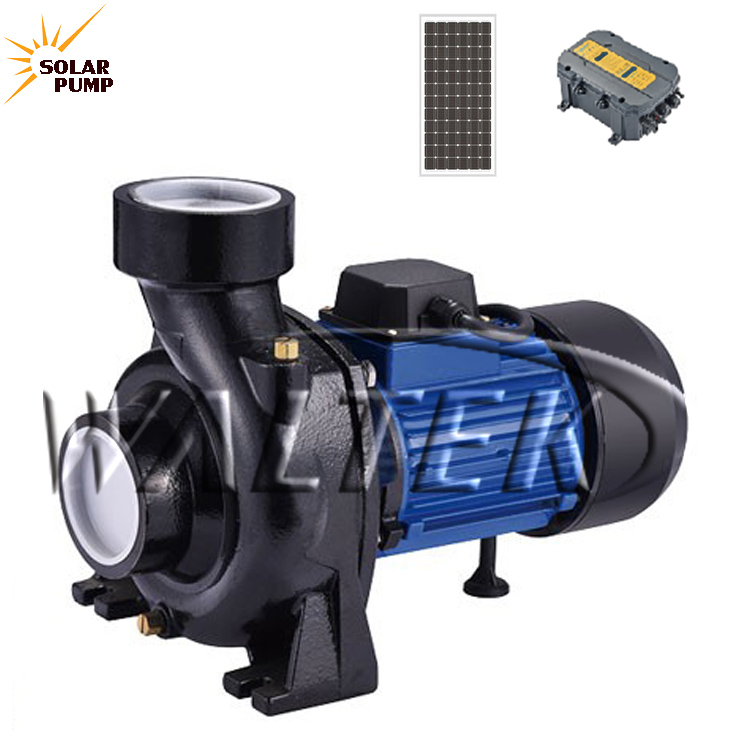

DC Solar Surface SNFM High Flow Pump

Waltek Water Pump SNFM Series DC Solar pump can be used to irrigation,house using water,animal drinking water and so on.Meanwhile,this type pump's motor is brushless DC motor,which is high working efficiency compared with AC motor and big flow.

The Energy supply can be:
1.Solar panels(DC) 2.Battery(DC) 3.Generator(AC) 4.AC power grid(AC)

The AC/DC PSS Pumps series surface pumps are one of the most highest quality DC pumps on the market. The series pumps are easy to install by hand without any special equipment. The pump power can be very big and the biggest  flow can get more than 60 m3 per hour .

Outlet & head & Pump body: Iron
Impeller: Brass
Motor: Permanent magnet dc brushless motor
Cable: 1.2M
Ail cooling

MPPT function controller

SPECIFICATION DATA:

MODEL	VOLTAGE	POWER	MAX SUCT	MAX FLOW	MAX HEAD	INLET/OUTLET
NO#	VDC	WATT	M	M3/H	M	INCH
SNFM15/14-72/550-H	72	550	8	15	14	1.5"*1.5"
SNFM20/14-96/750-H	96	750	8	20	14	2"*2"
SNFM28/15-144/1100-H	144	1100	8	28	15	2"*2"
SNFM45/17-192/1500-H	192	1500	8	45	17	3"*3"
SNFM60/16-280/2200-H	280	2200	8	60	16	4"*4"
