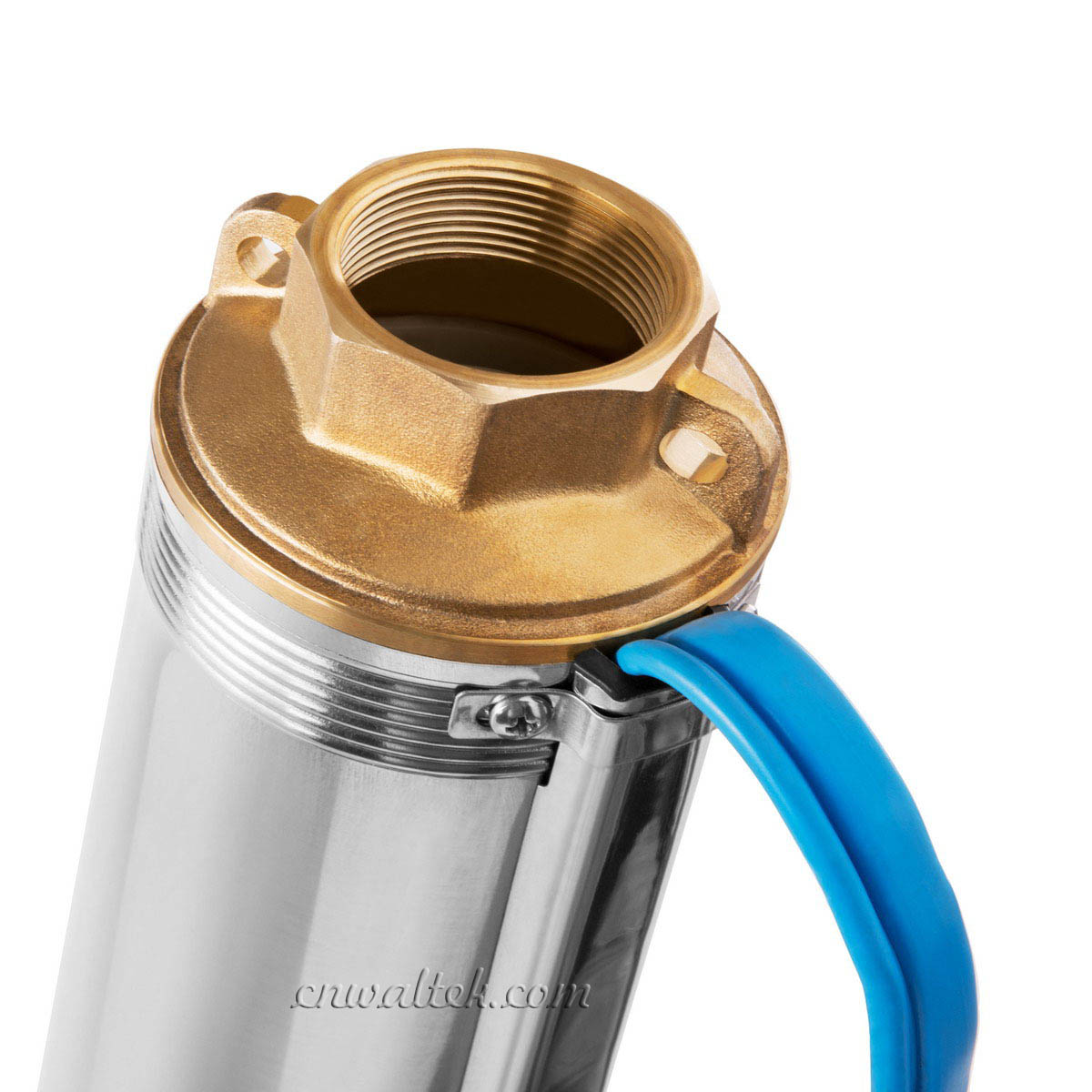

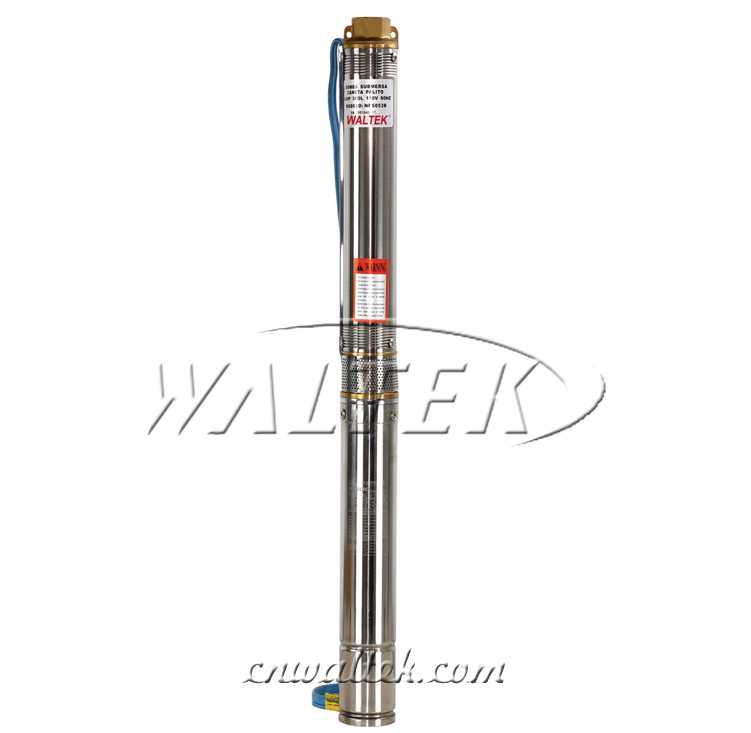

Home » 3inch Deep Well Pump
Detailed description
Application:
Waltek Water Pump:
Q max: 2.8(m³/h)
Max. fluid temperature: 35℃
Max. sand content: 0.25%
Maximum diameter: Φ75mm
Motor:
Power: Single phase: 0.18-1.1kw 220-240v or 110-127v
Insulation class: B
Protection grade: IP68
Frequency: 50Hz or 60Hz
• Specification Data:
|
Model |
Motor Power |
Head max |
Q max |
|
| Single phase 220-240V-50Hz | kW |
HP |
m |
m³/h |
| 3SDM/750QJD108-0.18 | 0.18 | 0.24 | 30 | 2.8 |
| 3SDM/750QJD110-0.25 | 0.25 | 0.33 | 38 | 2.8 |
| 3SDM/750QJD115-0.37 | 0.37 | 0.5 | 55 | 2.8 |
| 3SDM/750QJD122-0.55 | 0.55 | 0.75 | 79 | 2.8 |
| 3SDM/750QJD130-0.75 | 0.75 | 1 | 108 | 2.8 |
| 3SDM/750QJD140-1.1 | 1.1 | 1.5 | 144 |
2.8 |

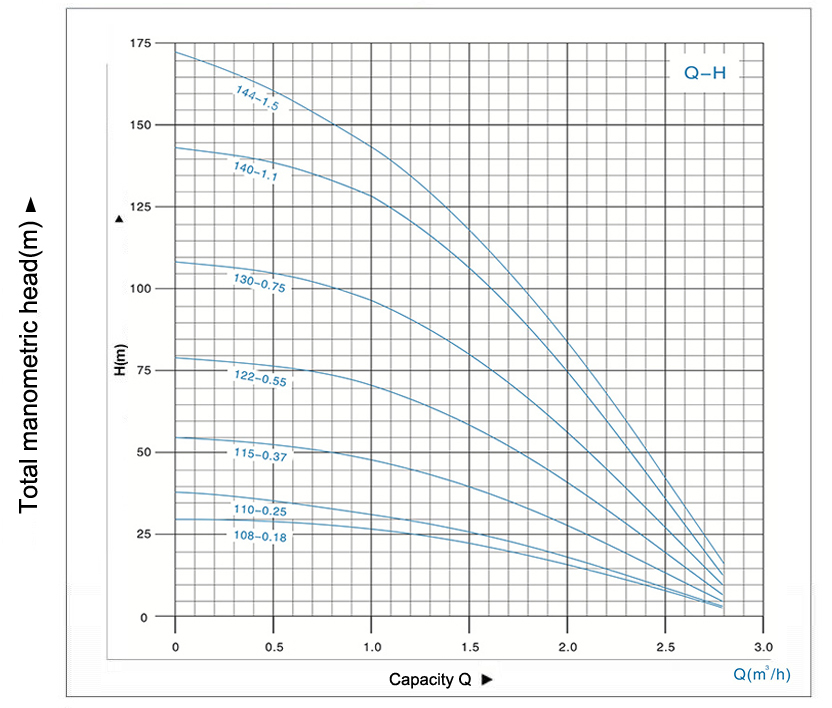

• PERFORMANCE CHART AT RMP:2850r/min Outlet:G1"
