Detailed description

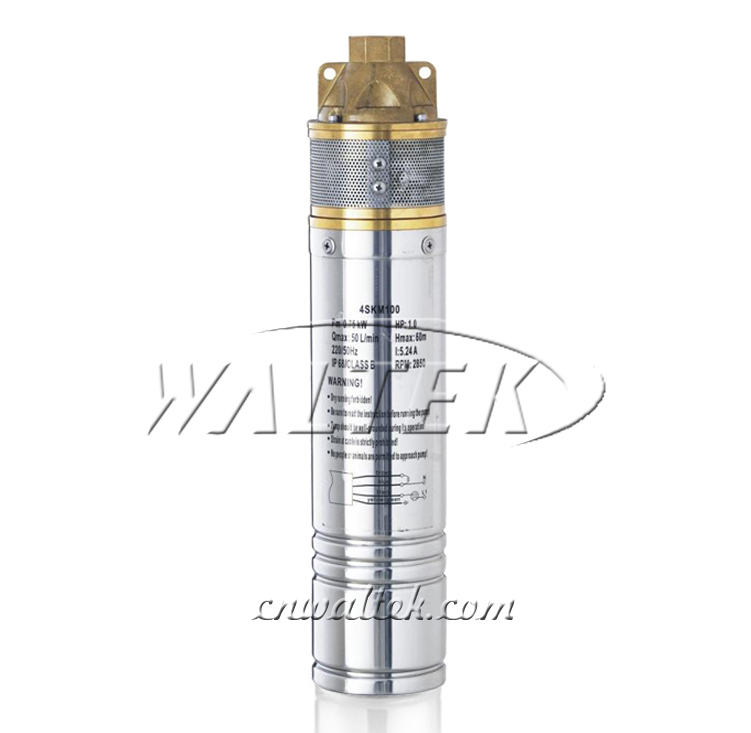

Waltek 4SKM submersible water pump
Application:
Waltek Water Pump:
Q max: 4.5(m³/h)
Max. fluid temperature: 35℃
Max. sand content: 0.25%
Maximum diameter: Φ98mm
Motor:
Power: Single phase: 0.75-1.5kw 220-240v or 110-127v
Insulation class: B
Protection grade: IP68
Frequency: 50Hz or 60Hz
Specification Data:
|
Model |
Motor Power |
Head max |
Q max |
||
| Single phase 220-240V-50Hz | Three phase 380-415V-50Hz | Kw |
Hp |
m |
m³/h |
| 4SKM100 | 4SK100 | 0.75 | 1 | 61 | 2.5 |
| 4SKM150 | 4SK150 | 1.1 | 1.5 | 99 | 2.5 |
| 4SKM200 | 4SK200 | 1.5 | 2 | 140 | 3.5 |

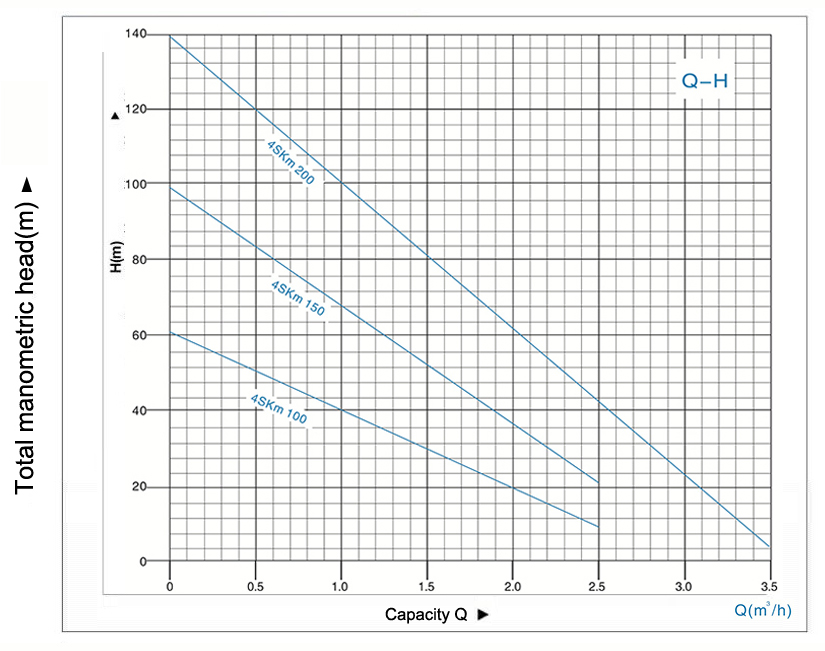

• PERFORMANCE CHART AT RMP=2850r/min Outlet:G1"
