Applications

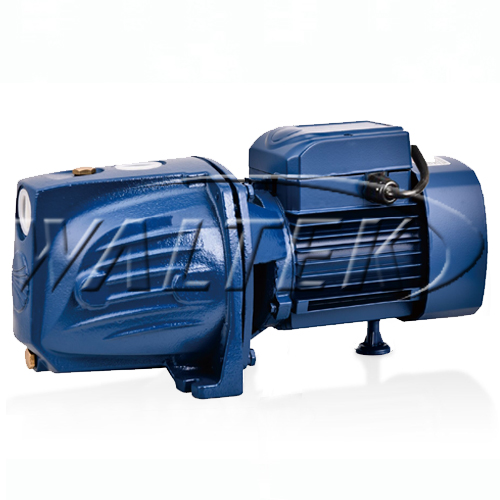

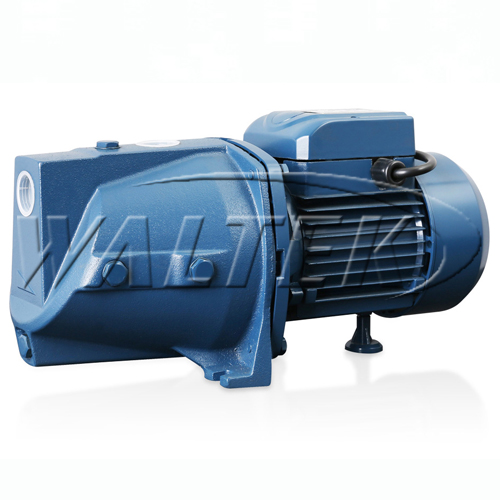

Waltek Self-priming JSW Water Pump
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Operating Conditions
Maximum fluid temperature up to +40℃.
Maximum Ambient temperature up to +40℃.
Maximum sand content:0.25%.
Maximum operating depth 15m.
Trans medium's PH:6.5~8.5.
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Pump body:Cast Iron
Pump body cover:Cast Iron
Impeller:Brass
Motor shaft:45#Steel or Stainless steel
Mechanical Seal:Ceramic-Graphite
Power:370W,550W,750W,1100W
Max Head:40m(JSW8M);45m(JSW10M);50m(JSW12M);55m(JSW15M)
Max Flow:45L/min(JSW8M);50L/min(JSW10M);65L/min(JSW12M);80L/min(JSW15M)
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
Specification Data:
| Model | Power |
Inlet Dia. |
Outlet Dia. |

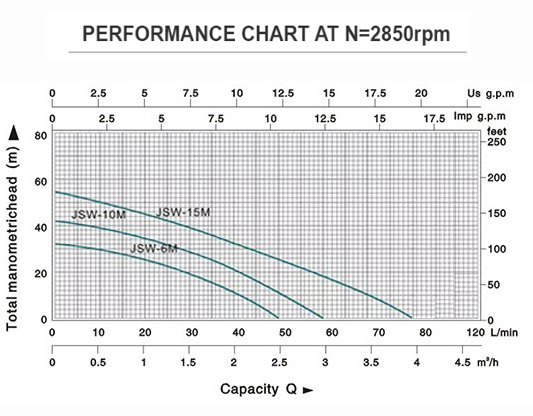

Performance Data | |||
|
1~ 220V/240V |
KW | HP |
H.max (m) |
Q.max
(L/min) |
Suck Head (m) |
||
| JSW-8M | 0.37 | 0.5 | 1" | 1" | 40 | 45 | 9 |
| JSW-10M | 0.55 | 0.75 | 1" | 1" | 45 | 50 | 9 |
| JSW-12M | 0.75 | 1.0 | 1" | 1" | 50 | 65 | 9 |
| JSW-15M | 1.1 | 1.5 | 1.25" | 1" | 55 | 80 | 9 |
