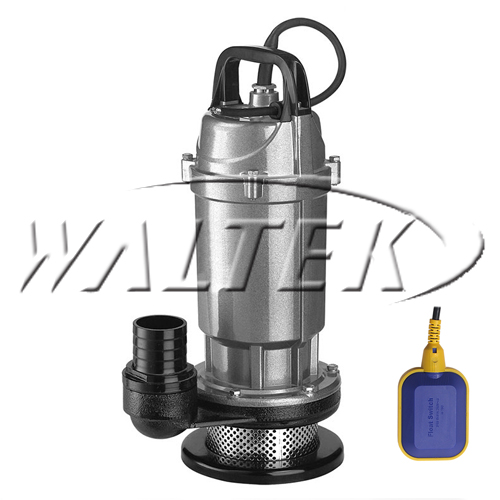

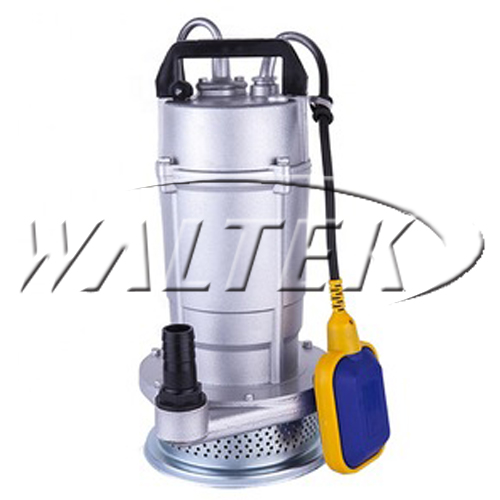

Waltek QDX Series Aluminum House Submersible Pump
Condition of usage:
1.The depth for the electrical pump below the water is no more than 5m;
2.The temperature of the water is no longer of 40℃
3.The PH figure of the water is between 6.5~8.5;
4.The grain diameter of the solid in the water is no bigger than 0.2mm
| Function: |
This model of pump is characterized with high heads,compact size,light weight and convenient use and
vastly used in highposition water delivery,flush and places as construction sites.The float switch can au-tomatically control on and off with the change of the liquid level.The protector in the motor can autom-atically cut off the power when it overheated or overcurrented.
Thus guarantee thee security and reliability of pump’s operation even in the atrocious environment.
|
Feature: |
1.100% copper wire, and automatic wiring
2.C&U bearings ( the best bearing brand of China )3.Double side mechanical seal
4.Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision
5.304 Stainless steel welding shaft
6.Demagnetization of stainless steel nuts
7.Anti-rust treatment castings and electrophoresis
| Specification Data: |
| Model | Voltage | Flow | Head | Power | Outlet Dia |
| (V) | (m3/h) | (m) | (Kw) | (mm) | |
| QDX1.5-12-0.25S/F |
1~220V/240V
|
1.5 | 12 | 0.25 | 25 |
| QDX1.5-17-0.37S/F | 1.5 | 17 | 0.37 | 25 | |
| QDX1.5-25-0.55S/F | 1.5 | 25 | 0.55 | 25 | |
| QDX3-18-0.55S/F | 3 | 18 | 32 | ||
| QDX10-12-0.55S/F | 10 | 12 | 40 | ||
| QDX15-7-0.55S/F | 15 | 7 | 50 | ||
| QDX3-28-0.75S/F | 3 | 28 | 0.75 | 25 | |
| QDX3-24-0.75S/F | 3 | 24 | 32 | ||
| QDX7-18-0.75S/F | 7 | 18 | 40 | ||
| QDX10-16-0.75S/F | 10 | 16 | 50 | ||
| QDX15-10-0.75S/F | 15 | 10 | 65 | ||
| QDX40-7-1.1S/F | 40 | 7 | 1.1 | 80 | |
| QDX1.5-38-1.1S/F | 1.5 | 38 | 25 | ||
| QDX7-26-1.1S/F | 7 | 26 | 40 | ||
| QDX10-22-1.1S/F | 10 | 22 | 50 | ||
| QDX15-15-1.1S/F | 15 | 15 | 65 | ||
| QDX45-9-1.5S/F | 40 | 9 | 1.5 | 80 |

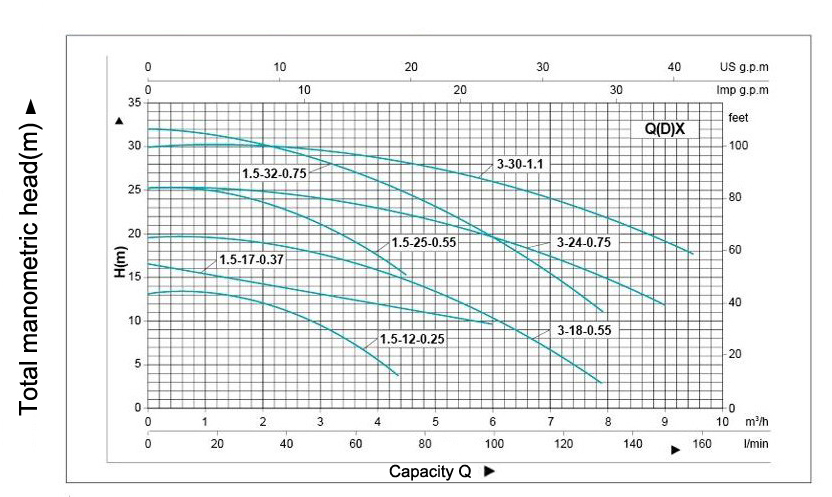

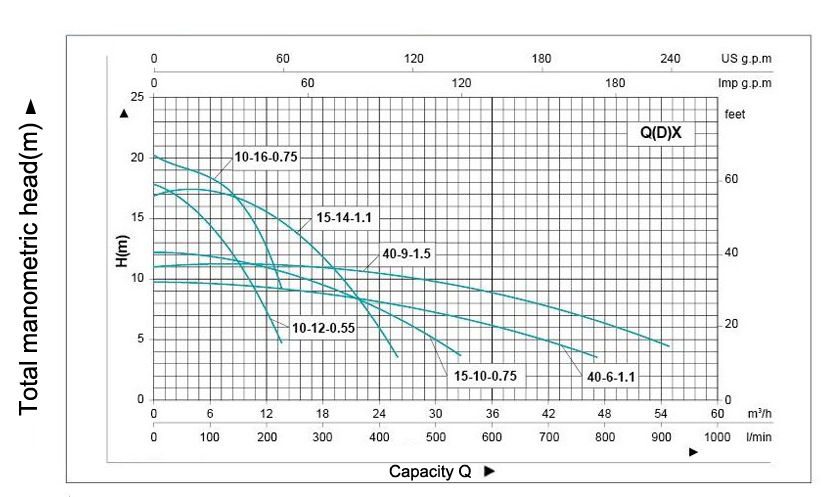

PERFORMANCE CHART AT RMP=2850r/min Outlet:G1"
