Applications

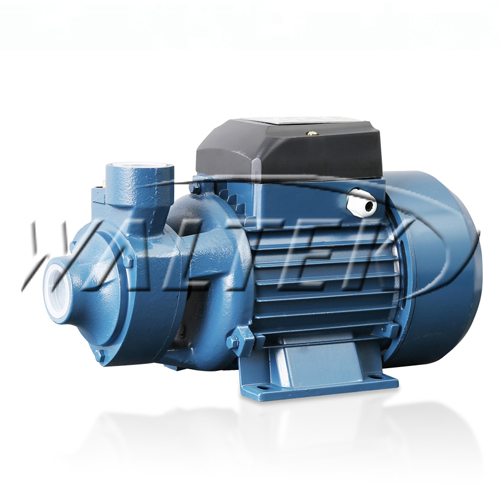

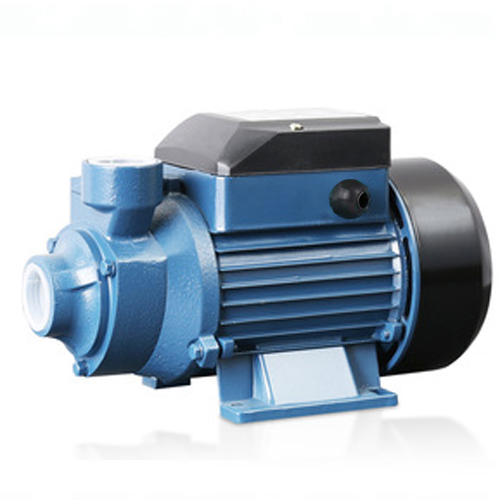

Waltek Vortex QB series peripheral water pumps are mainly used to transfer clean water or other liquid which is similar with water character. It is suitable for domestic water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
Operating conditions
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m
Continuous duty
Motor and Pump
Heavy Duty Continuous Work
Motor Housing: Aluminum Alloy
Shaft: Carbon Steel/Stainless Steel
Insulation: Class F
Protection : IP44/P54
Cooling: External Ventilation
Pump Body: Cast Iron(with Brass Insert if required)
Impeller: Brass/Stainless Steel
Mechanical Seal: SIC/Ceramic/Graphite
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
PERFORMANCE CHART AT RMP=2850r/min Outlet:G1"
Specification Data:
Inlet
Dia.
Outlet
Dia.
Performance Data
1~
220V/240V
H.max
(m)
Q.max
(L/min)
Suck Head
(m)
Model
Power
KW
HP
QB60
0.37
0.5
1"
1"
40
40
9
QB60-1
0.37
0.5
1"
1"
40
40
9
QB70
0.55
0.75
1"
1"
50
45
9
QB70-1
0.55
0.75
1"
1"
50
45
9
QB80
0.75
1
1"
1"
55
50
9
QB80-1
0.75
1
1"
1"
55
50
9

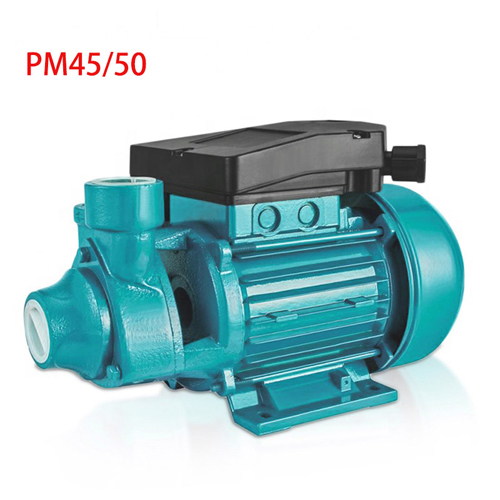

PM45
0.37
0.5
1"
1"
36
36
9
PM55
0.55
0.75
1"
1"
45
50
9
PM65
0.75
1
1"
1"
60
60
9
Remarks:110V, 115V, 127V, 110/220V, 230V, 240V, 50Hz or 60Hz can according to the customer's requirements.
