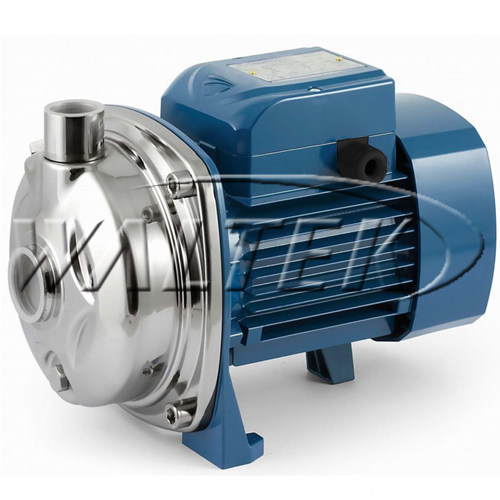

SCM Series Stainless Steel Centrifugal Pump

APPLICATION:

Waltek SCM Centrifugal Water Pump is suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets , for transferring liquids and for the irigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

MOTOR:

SCM Centrifugal pump
Stainless Steel pump head
Motor housing:  Aluminum

Impeller:Brass

Motor shaft:Carbon steel,AISI402/304SS if request

Mechanical seal:Ceramic/Graphite

Protection IP44

Centrifugal pump

Single phase 220v/50hz.Brass impeller,carbon steel motor shaft,with thermal protector inside.Other model

and material such as three phase,110v/60hz,dual voltage,stainless shaft,etc,will be available upon request

Operating conditions:

Fluid temperature up 60

Maximum ambient temperature 40

Total suction lift up to 8m
