Applications

For water supply from wells or reservoirs.

For domestic use,for civil and industrial applications.

For garden use and irrigation.

Operating Conditions

Maximum fluid temperature up to +40℃.

Maximum Ambient temperature up to +40℃.

Maximum sand content:0.25%.

Maximum operating depth 15m.

Trans medium's PH:6.5~8.5.

Motor and Pump

Rewindable motor

Single-phase:220V-240V/50Hz

Three-phase:380V-415V/50Hz

Pump body:Cast Iron

Pump body cover:Cast Iron

Impeller:Brass

Motor shaft:45#Steel or Stainless steel

Mechanical Seal:Ceramic-Graphite

Options on request

Special mechanical seal

Other voltages or frequency 60 Hz

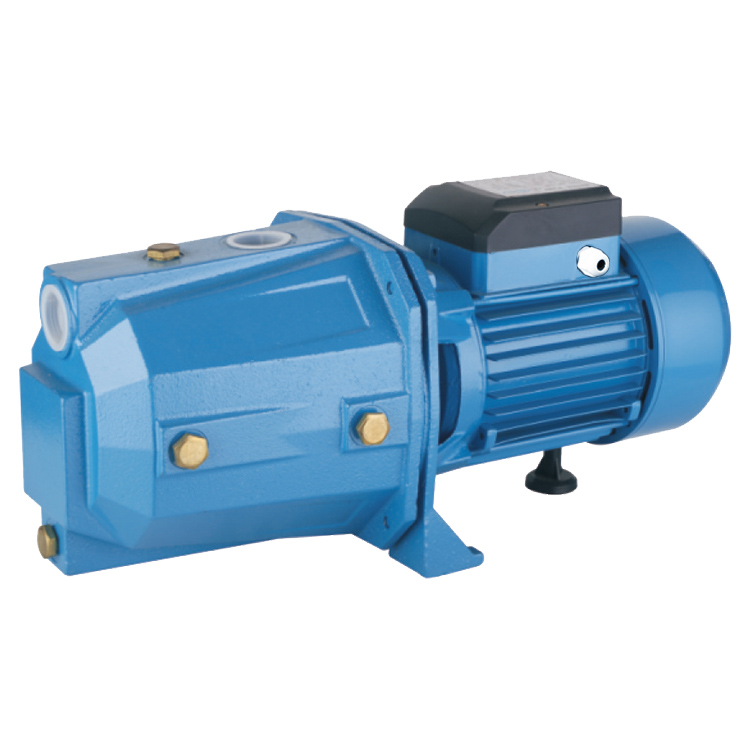

JET-150

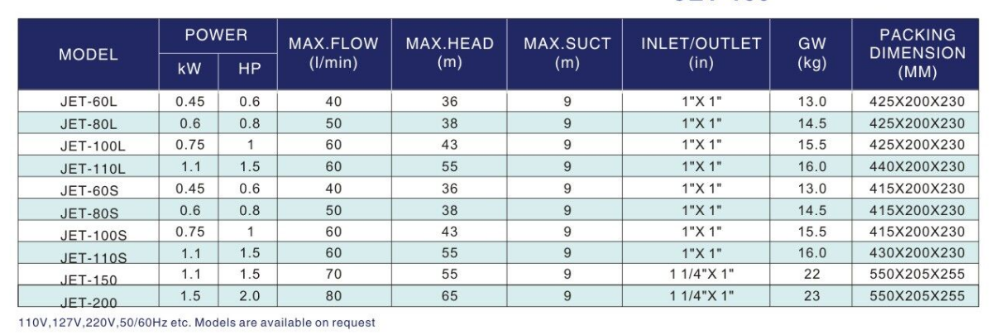

Specification Data:

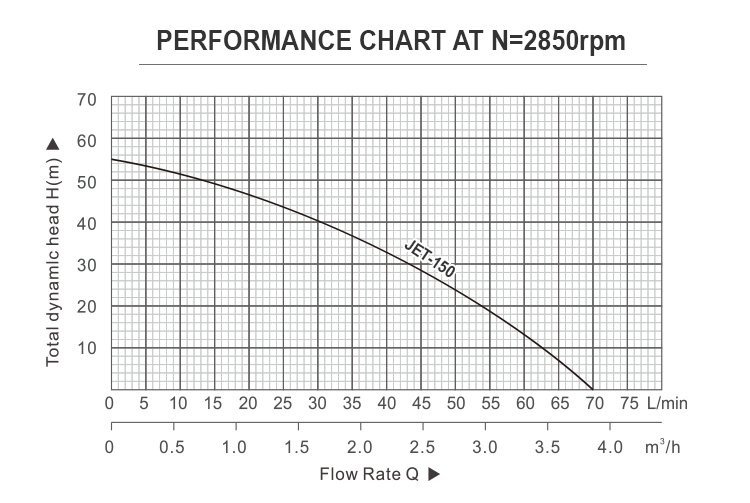

PERFORMANCE CHART  AT          RMP=2850r/min       Outlet:G1"
