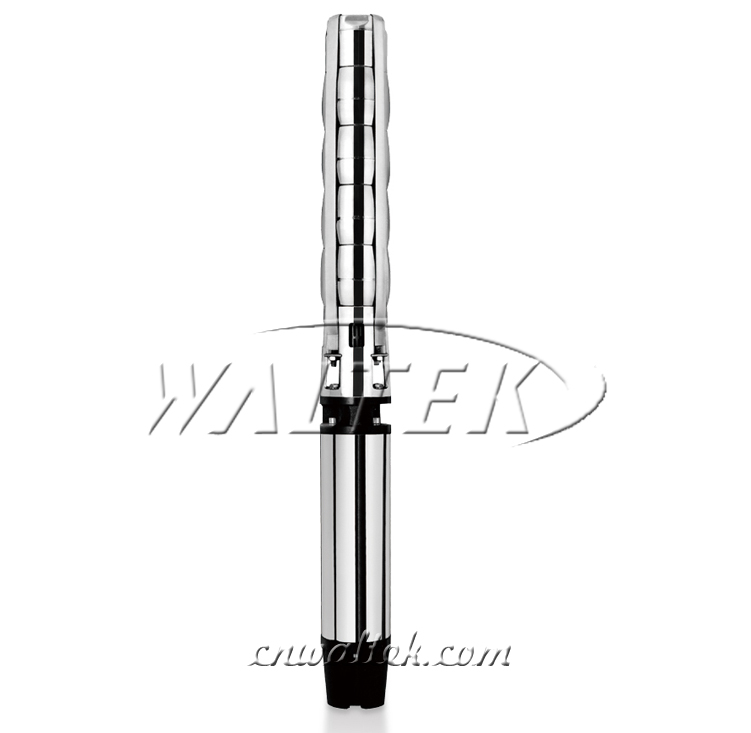

Home » 6inch 6SP Stainless Steel Submersible Pump
Detailed description
Application:
Waltek Water Pump:
Q max: 72(m³/h)
Max. fluid temperature: 35℃
Max. sand content: 0.25%
Maximum diameter: Φ143mm
Motor:
Power: Single phase: 5.5~22kw 380~415Vac
Insulation class: F
Protection grade: IP68
Frequency: 50Hz or 60Hz
Specification Data:
|
Model |
Motor Power |
Head max |
Q max |
|
| Three phase 380-415V-50/60Hz | Kw |
Hp |
m |
m³/h |
| 6SP46/03-5.5 | 5.5 | 7.5 | 38 | 60 |
| 6SP46/05-7.5 | 7.5 | 10 | 64 | 60 |
| 6SP46/06-9.2 | 9.2 | 12.5 | 76 | 60 |
| 6SP46/07-11 | 11 | 15 | 89 | 60 |
| 6SP46/08-13 | 13 | 17.5 | 102 | 60 |
| 6SP46/10-15 | 15 | 20 | 127 | 60 |
| 6SP46/12-18.5 | 18.5 | 25 | 150 | 60 |
| 6SP46/15-22 | 22 | 30 | 187 |
60 |

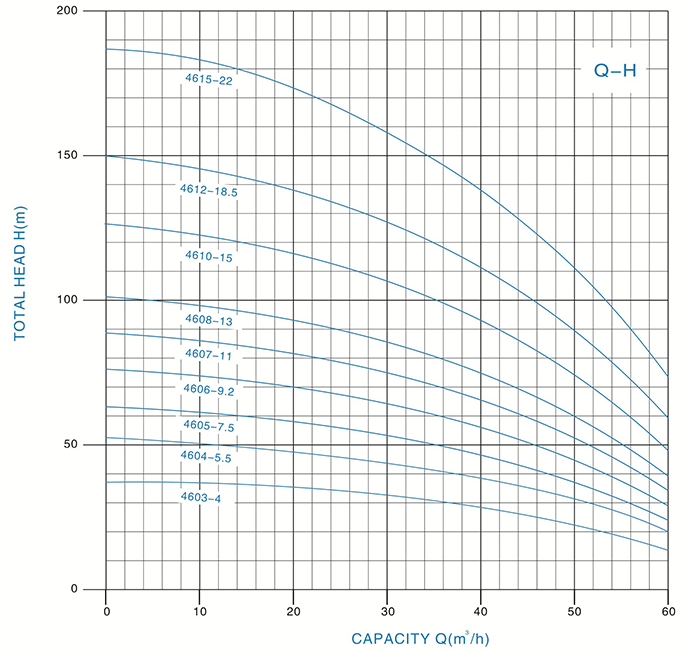

• PERFORMANCE CHART AT RMP:2850r/min Outlet:G1"
