Waltek Single-sided stainless steel/copper/aluminium manual electric 2 spots welder
Product Features:
1.Adopting advanced low consumption of main transformer technology, small volume, high efficient performance;
2.Easy to start arc, stable welding current, fast response, and well-formed weld;
3.Heavy load duty cycle, continuous welding,suitable for low carbon steel,wire,sheet iron shell,stainless steel plates welding;
4.Control by foot padel,two welding spots are spring press struction.
5.Automatic control welding time,water cooling.
|
Model |
SPOT-10 |
SPOT-16 |
SPOT-25 |
|
Input voltage(V) |
3PH AC380V±15% |
3PH AC380V±15% |
3PH AC380V±15% |
|
Throat Depth(mm) |
280 |
290 |
300 |
|
No-load voltage(V) |
2 |
2.5 |
3 |
|
Efficiency(%) |
85 |
85 |
85 |
|
Welding Thickness(mm) |
0.3+0.3-2+2 |
0.5+0.5-2.5+2.5 |
0.5+0.5-3+3 |
|
Insulation Grade |
H |
H |
H |
|
Arm strech length(mm) |
180 |
180 |
200 |
|
Gross Weight(KG) |
80 |
85 |
100 |
|
Dimension(mm) |
780*350*1100 |
800*355*1150 |
800*355*1150 |

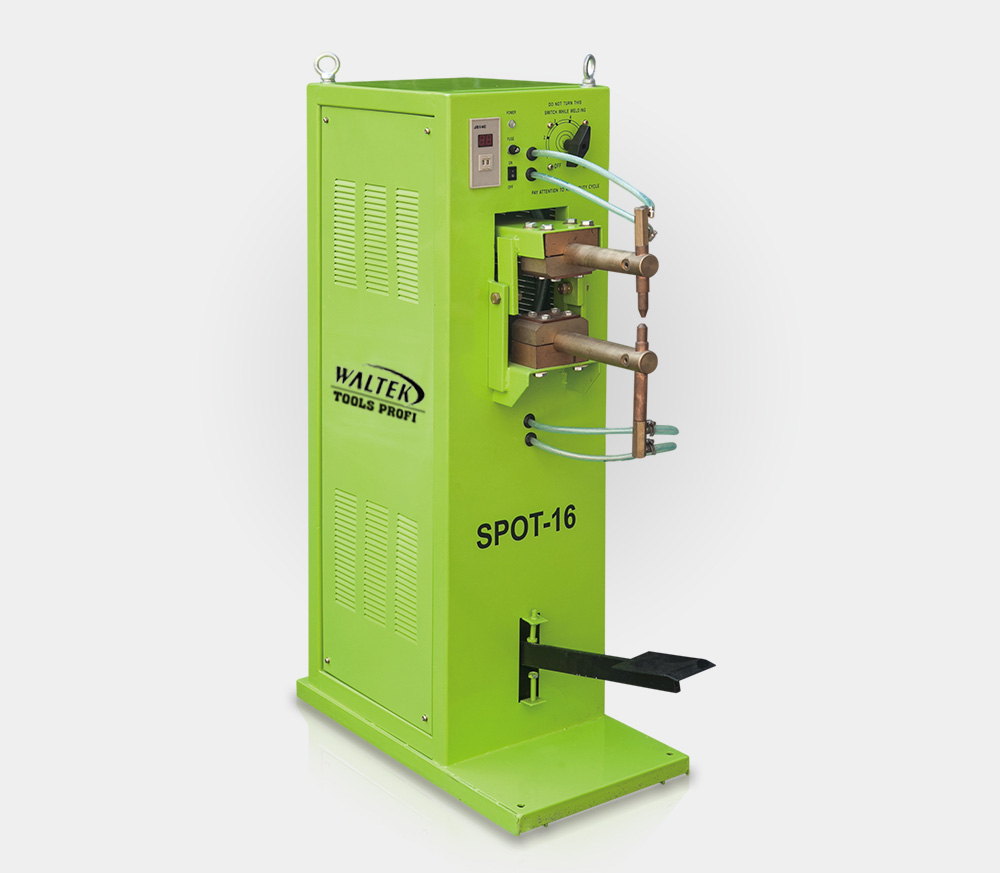

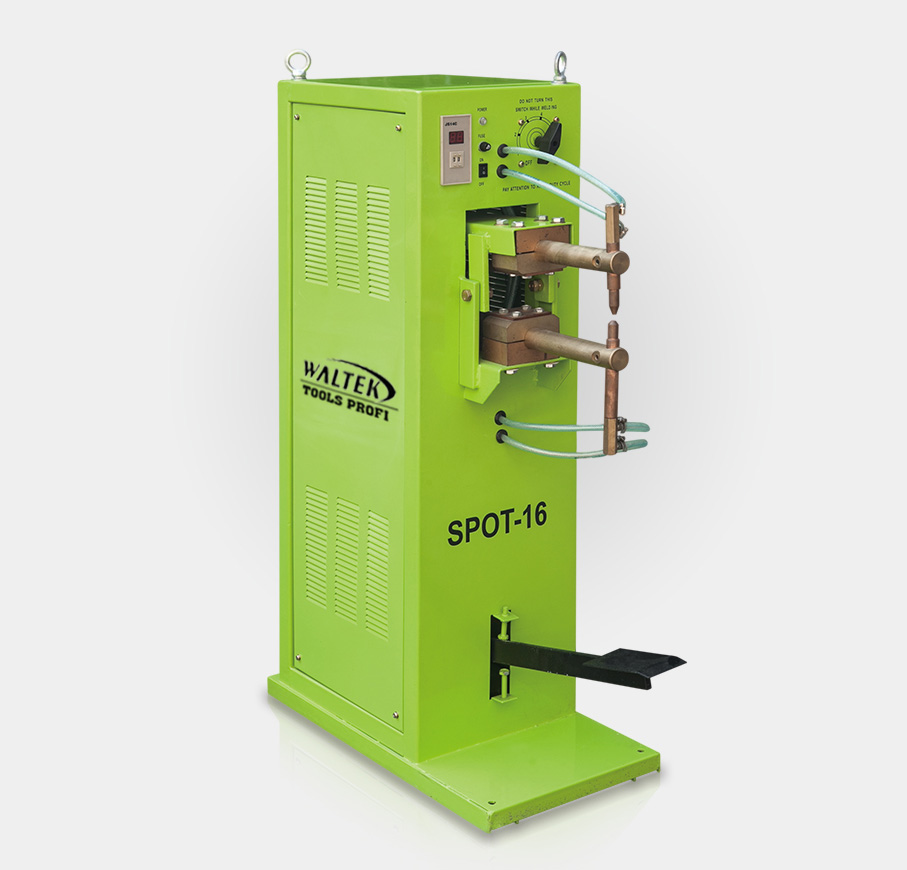

Product Image:
