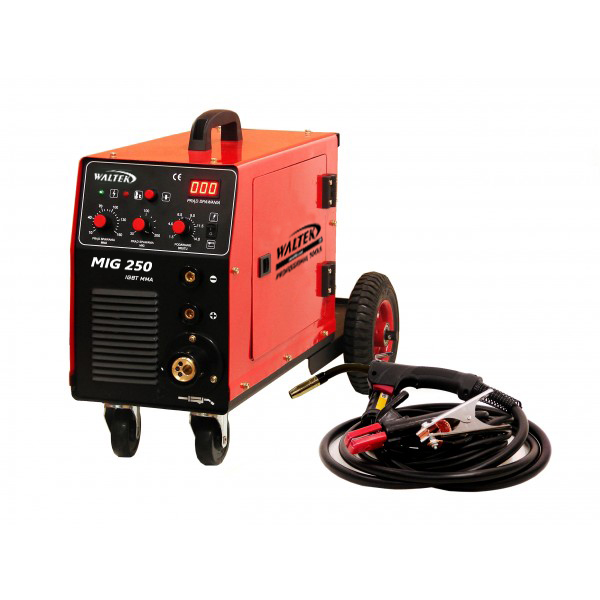

Waltek MIG250 MIG300 MIG350 Multi function IGBT Inverter DC Welding Machine
Product Features:
1.MIG & MAG&MMA function in one machine.
2.Adopting advanced IGBT inverter technology, small volume, light weight, high efficient performance;
3.Easy to start arc, stable welding current, fast response, and well-formed weld;
4.Heavy load duty cycle, continuous welding,suitable for Scratch start TIG welding;
5.Portable,LCD display,Anti-stick,Hot start,Arc Force,VRD option available;
6.Wide range of working voltage, strong resistance to grid fluctuations.
7. Automatic over-current, over-heat and over-voltage protection.
8. Can be used with gas or without gas.
9. Applicable for welding low carbon steel and low alloy steel of different thickness.
Product Details:

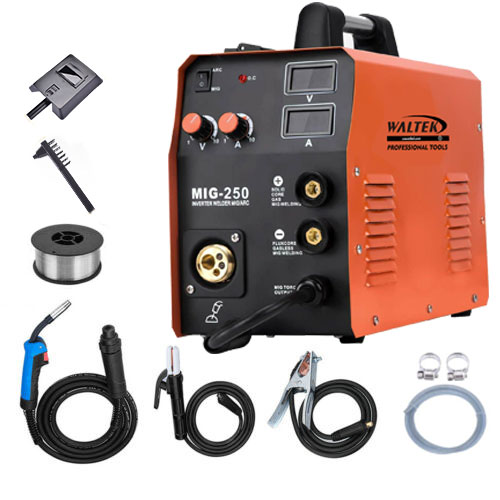

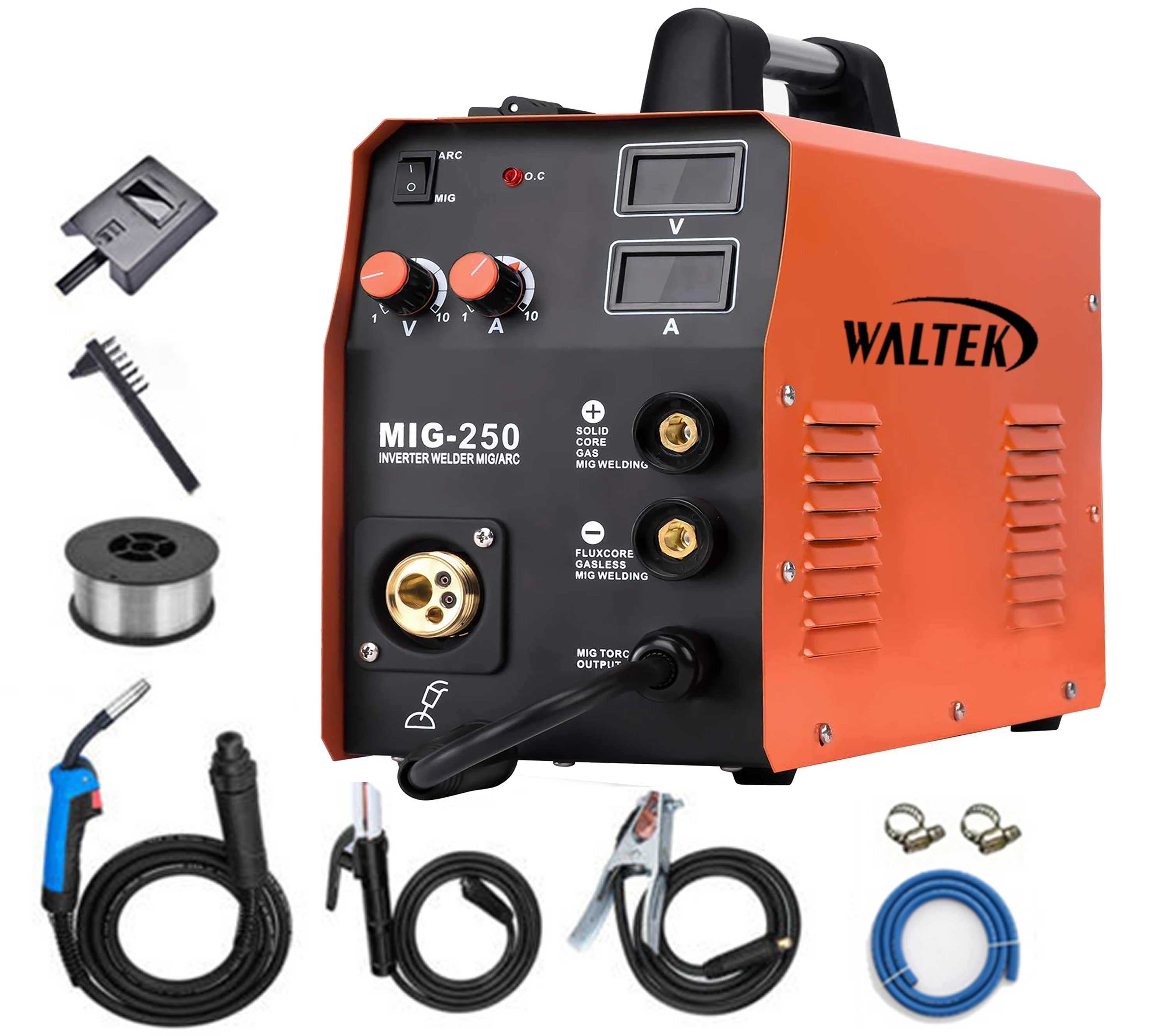

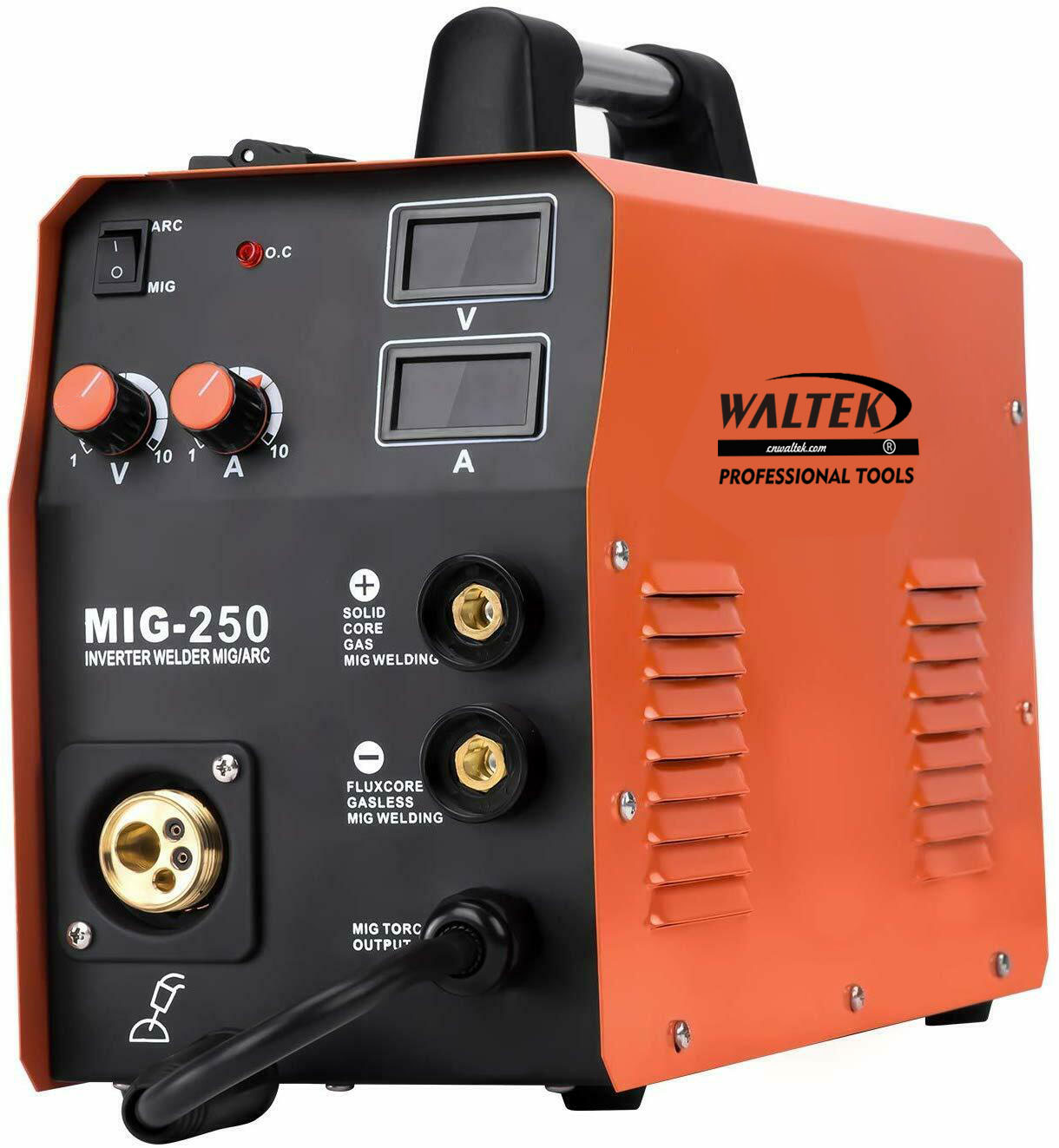

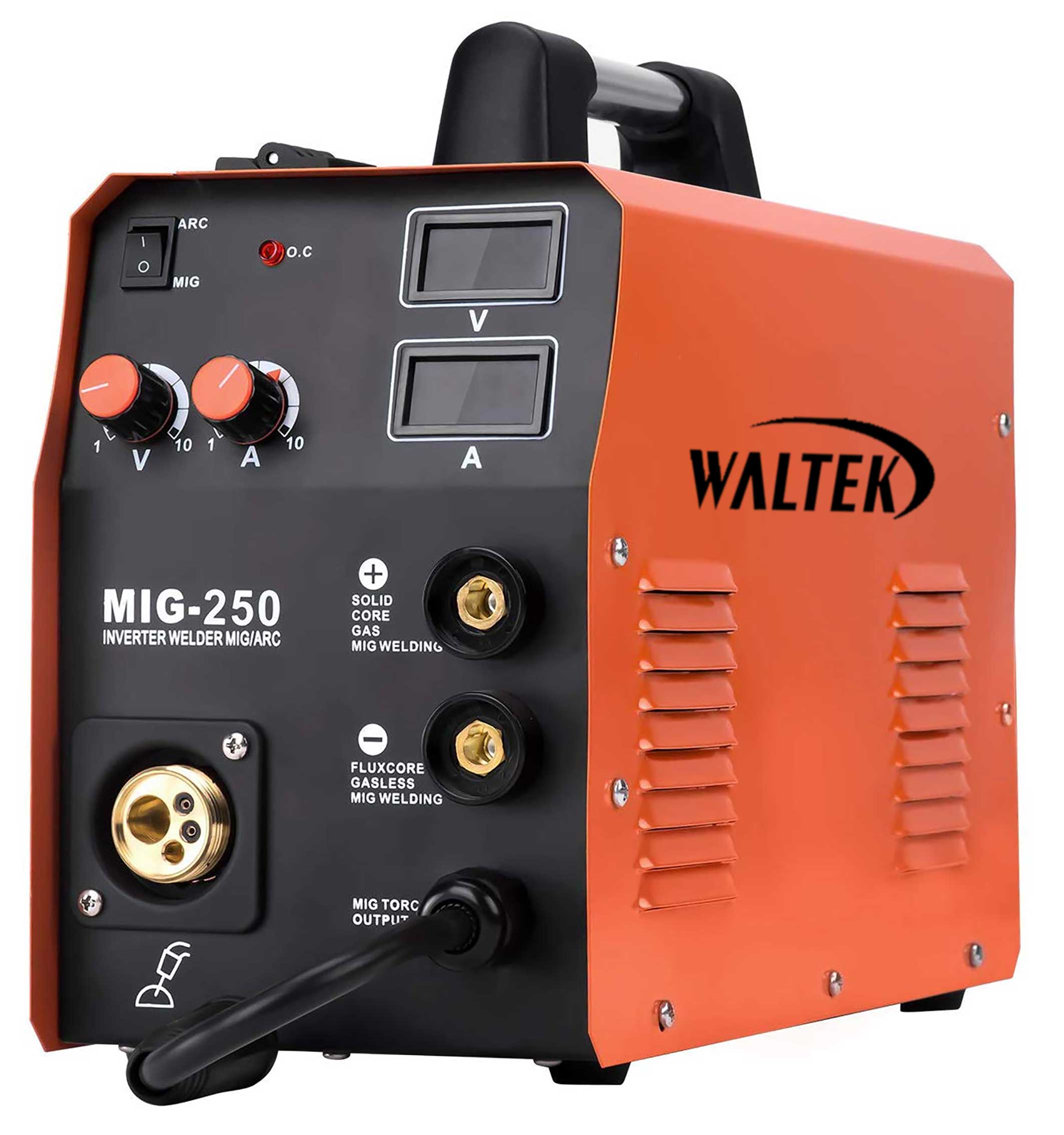

Waltek MIG-250 MIG/MAG/MMA/Lift TIG Multiprocess 4in1 welding machine

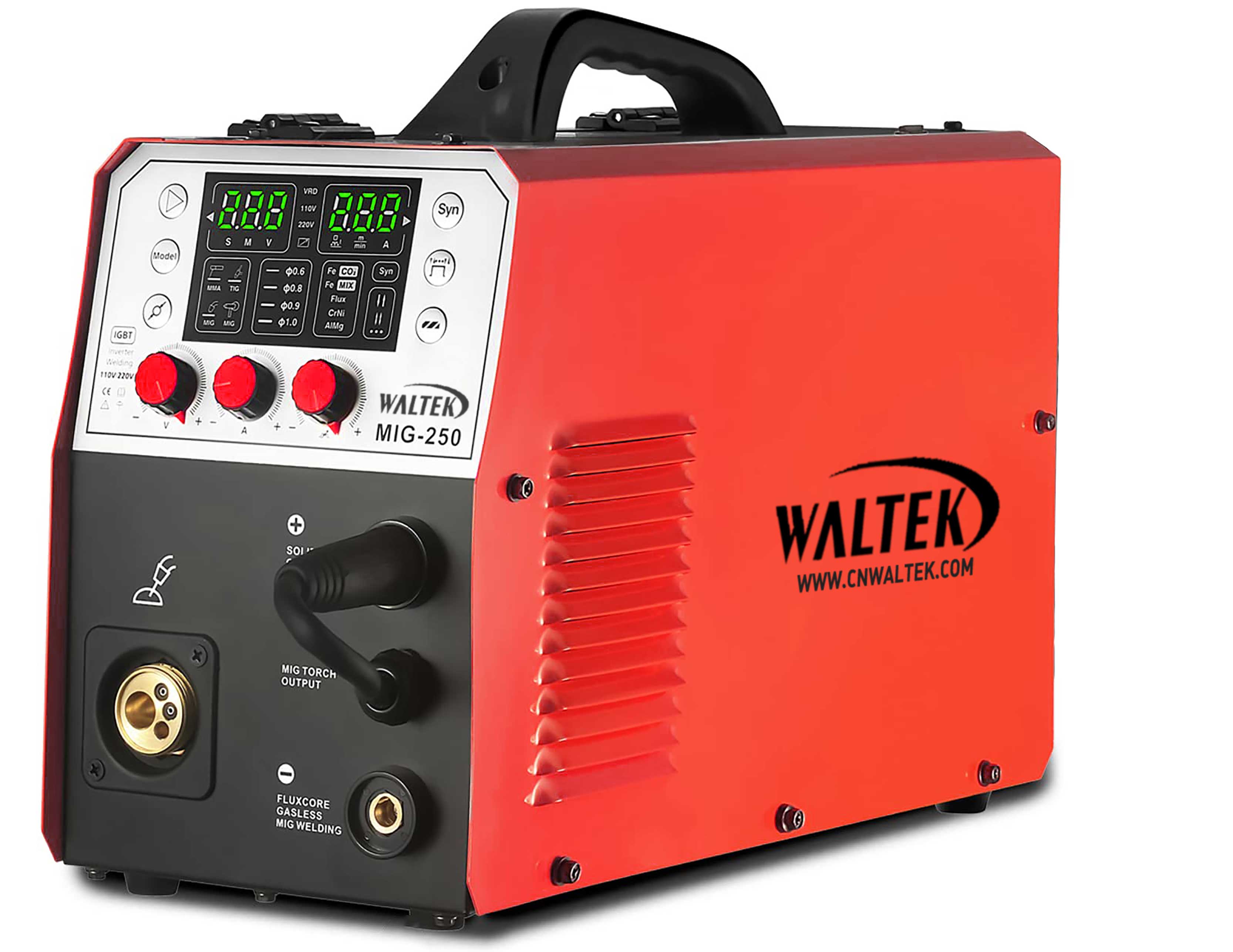

Waltek MIG-250 LCD Screen MIG/MAG/MMA/Lift TIG Multiprocess 4in1 welding machine
Specifications Data:
Model
MIG 200
MIG 250
MIG 300
Input voltage(V)
1PH AC220V±15%
1PH AC220V±15%
1PH AC220V±15%
Output current(A)
20-140
20-180
20-200
No-load voltage(V)
65±5
65±5
65±5
Efficiency(%)
85
85
85
Protection grade
IP21
IP21
IP21
Insulation Grade
F
F
F
Gross Weight(KG)
15
16.50
18.00
Dimension of machine(mm)
420*215*330
420*215*330
420*215*330
Dimension of package(mm)
520*305*400
520*305*400
520*305*400
MIG 350
1PH AC220V±15%
20-250
65±5
85
IP21
F
21.00
420*215*330
520*305*400

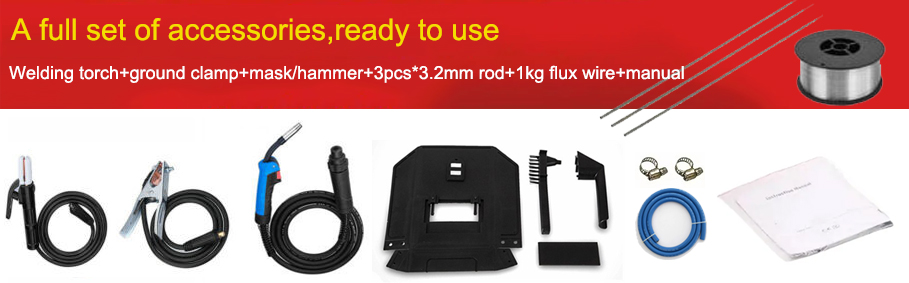

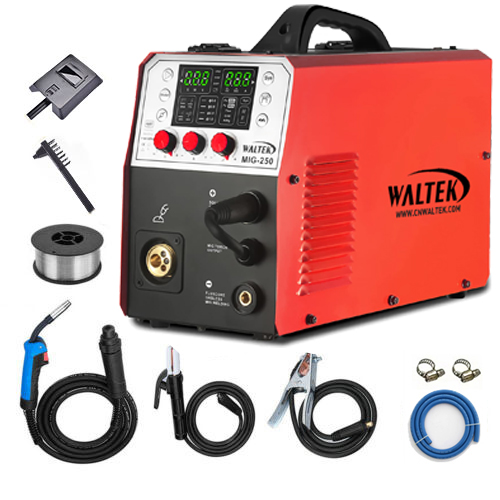

Product Accessories:
- 1x MIG Welder
- 1x 4m MIG Torch-MB15
- 1x 1.8m MMA Torch
- 1x 1.5m ground clamp
- 1x Flux Wire 1kg
- 1x 2m gas hose
- 1x Wire Brush & Welder Mask
- 1x User Manual
