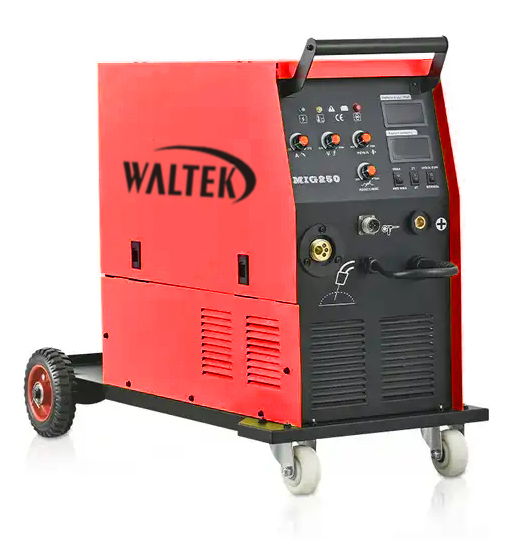

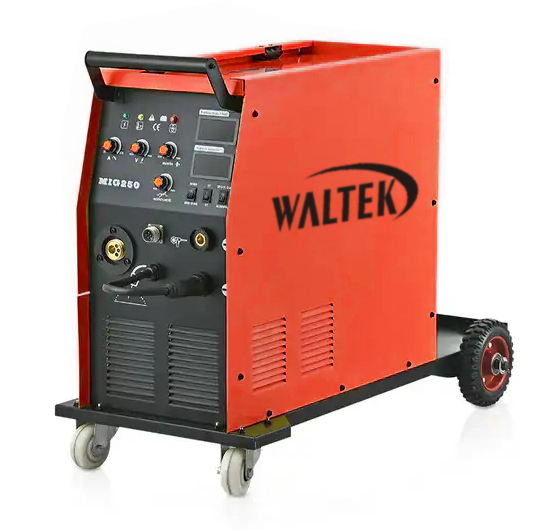

Waltek multifunction MIG250 MIG350 MIG400 MIG500 Inverter DC Welding Machine
Product Features:
1.MIG & MAG&MMA function in one machine.
2.Adopting advanced IGBT inverter technology, small volume, light weight, high efficient performance;
3.Easy to start arc, stable welding current, fast response, and well-formed weld;
4.Heavy load duty cycle, continuous welding,suitable for Scratch start TIG welding;
5.Portable,LCD display,Anti-stick,Hot start,Arc Force,VRD option available;
6.Wide range of working voltage, strong resistance to grid fluctuations.
7. Automatic over-current, over-heat and over-voltage protection.
8. Can be used with gas or without gas.
9. Applicable for welding low carbon steel and low alloy steel of different thickness.
Specifications Data:
|
ITEM No.#
|
MIG-250DP
|
MIG-350DP
|
MIG-400DP
|
MIG-500DP
|
|
Input Power Voltage V
|
AC230V
|
AC380V
|
AC380V
|
AC380V
|
|
Input Power Frequency Hz
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Rated Input Capacity KVA
|
8.2
|
8.5
|
11.95
|
17
|
|
Output Current Range(MIG) A
|
40-230
|
40-280
|
40-400
|
40-500
|
|
Output Current Range (MMA) A
|
20-200
|
20-250
|
20-350
|
20-450
|
|
No-load voltage(V)
|
65+5
|
65+5
|
65+5
|
65+5
|
|
Rated Duty Cycle %
|
60
|
60
|
60
|
60
|
|
Wire Feed Speed M/min
|
3-15
|
3-15
|
3-15
|
3-15
|
|
Dimensions of machine(mm)
|
950*415*700
|
950*415*700
|
950*415*700
|
950*415*700
|
|
Dimensions of package(mm)
|
782*485*685
|
782*485*685
|
782*485*685
|
782*485*685
|
|
|
|
|
|
|
|
|
|
|
|
|
FAQ:
Q: What function does this welder have?
A: Aluminum ,carbon steel and stainless steel and copper.
A: We are factory based in Taizhou City,Zhejiang Province since 2010.
A: Generally, it is about 2 days if the goods are in stock. or it is 5-15 days if the goods are not in stock, it is according to the order quantity.
A: Yes, we could offer the sample, but not for free charge.
A: When the payment is ≤5000USD, 100%TT in advance; when the payment is ≥5000USD, 30% T/T in advance , the balance will be paid before delivery.
Q: How long has your factory been established?
A:Our factory was established in 2010 year, already has history for more than 10 years.
A: Of course, we always do OEM for our customers abroad. The MOQ quantity is based on machine model.
