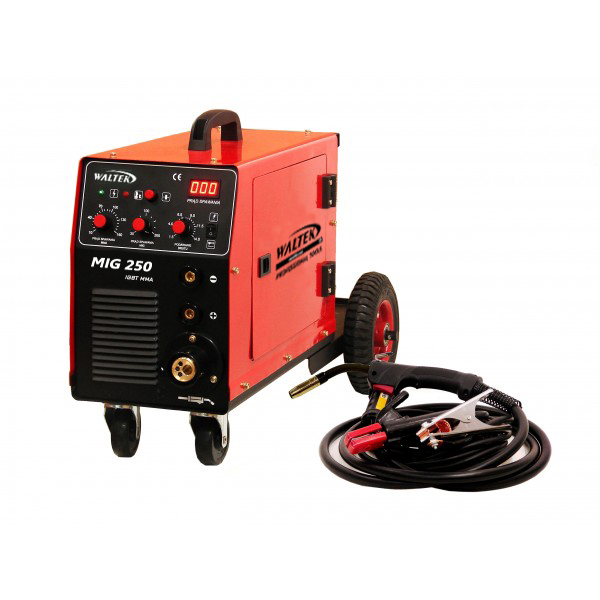

Waltek Multiprocess MIG250 MIG350 MIG400 MIG500 DC Inverter Welding Machine
Product Features:
1.MIG & MAG&MMA function in one machine.
2.Adopting advanced IGBT inverter technology, small volume, light weight, high efficient performance;
3.Easy to start arc, stable welding current, fast response, and well-formed weld;
4.Heavy load duty cycle, continuous welding,suitable for Scratch start TIG welding;
5.Portable,LCD display,Anti-stick,Hot start,Arc Force,VRD option available;
6.Wide range of working voltage, strong resistance to grid fluctuations.
7. Automatic over-current, over-heat and over-voltage protection.
8. Can be used with gas or without gas.
9. Applicable for welding low carbon steel and low alloy steel of different thickness.
Specifications Data:
|
ITEM No.#
|
MIG-250M
|
MIG-300M
|
MIG-350M
|
MIG-400M
|
|
Input Power Voltage V
|
AC230V
|
AC230V
|
AC380V
|
AC380V
|
|
Input Power Frequency Hz
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Rated Input Capacity KVA
|
8.2
|
8.5
|
11.95
|
17
|
|
Output Current Range(MIG) A
|
40-200
|
40-250
|
40-300
|
40-350
|
|
Output Current Range (MMA) A
|
20-200
|
20-250
|
20-300
|
20-350
|
|
No-load voltage(V)
|
65+5
|
65+5
|
65+5
|
65+5
|
|
Rated Duty Cycle %
|
60
|
60
|
60
|
60
|
|
Wire Feed Speed M/min
|
3-15
|
3-15
|
3-15
|
3-15
|
|
Dimensions of machine(mm)
|
420*215*330
|
420*215*330
|
420*215*330
|
420*215*330
|
|
Dimensions of package(mm)
|
625*385*420
|
625*385*420
|
625*385*420
|
625*385*420
|
|
|
|
|
|
|
|
|
|
|
|
|
