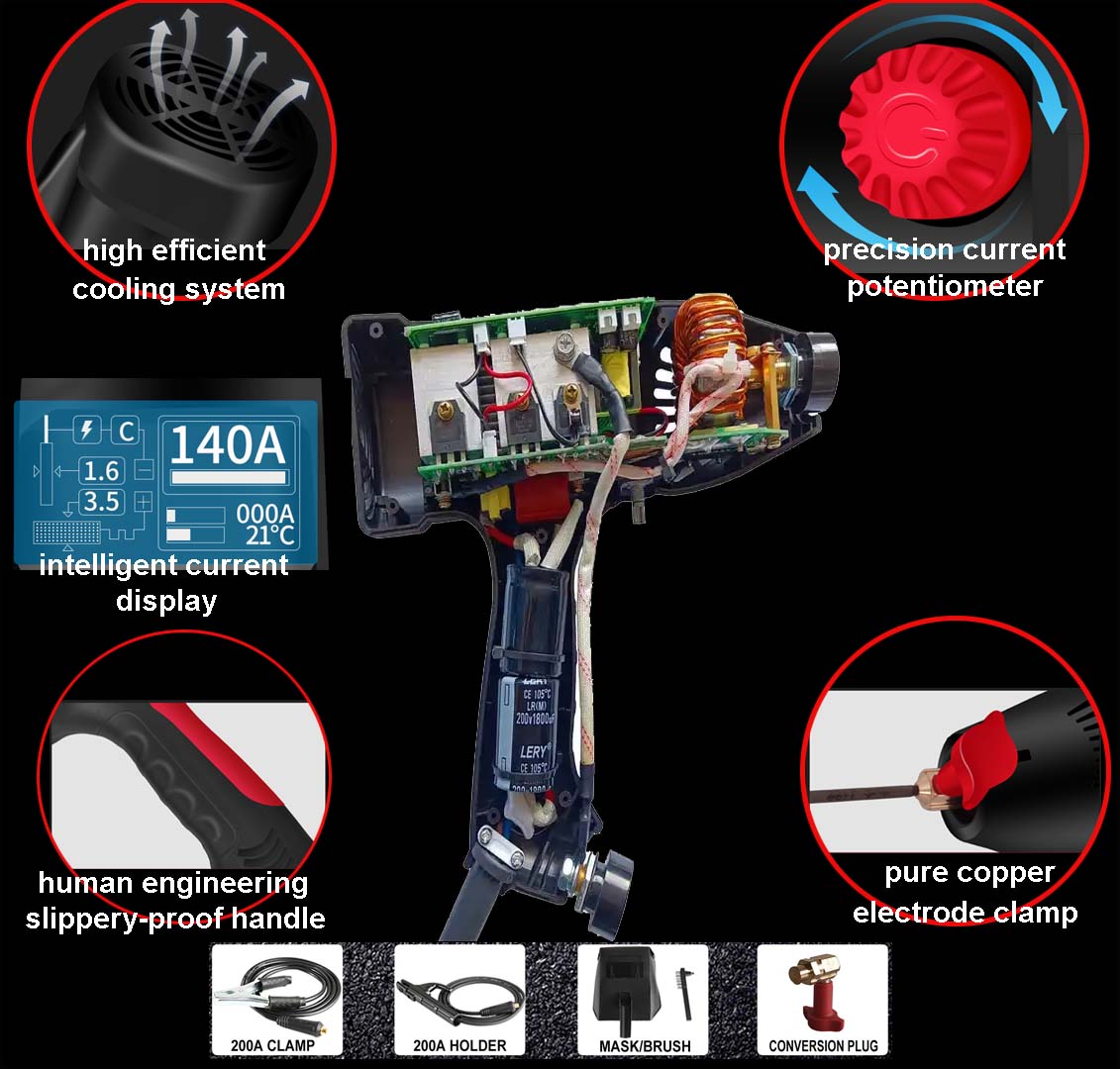

Product Features:
1.Adopting advanced IGBT inverter technology, small volume, light weight, high efficient performance;
2.Easy to start arc, stable welding current, fast response, and well-formed weld;
3.Heavy load duty cycle, continuous welding,suitable for Scratch start TIG welding;
4.Portable,LCD display,Anti-stick,Hot start,Arc Force,VRD option available;
5.Wide range of working voltage, strong resistance to grid fluctuations.
Specifications Data:
Model
MMA 200H
MMA 250H
MMA 300H
Input voltage(V)
1PH AC220V±15%
1PH AC220V±15%
1PH AC220V±15%
Output current(A)
20-120
20-140
20-160
No-load voltage(V)
65±5
65±5
65±5
Efficiency(%)
85
85
85
Protection grade
IP21
IP21
IP21
Insulation Grade
F
F
F
Gross Weight(KG)
3.5
3.8
4.2
Dimension of machine(mm)
225*85*225
225*85*225
225*85*225
Dimension of package(mm)
335*115*295
335*115*295
335*115*295
