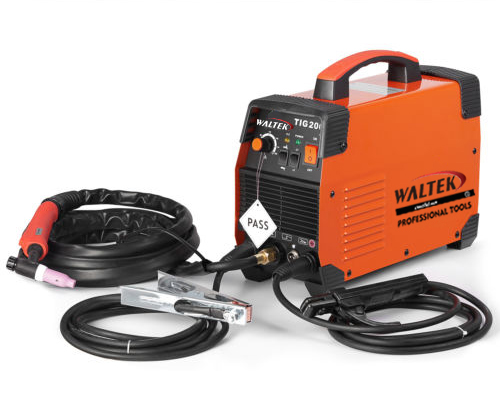

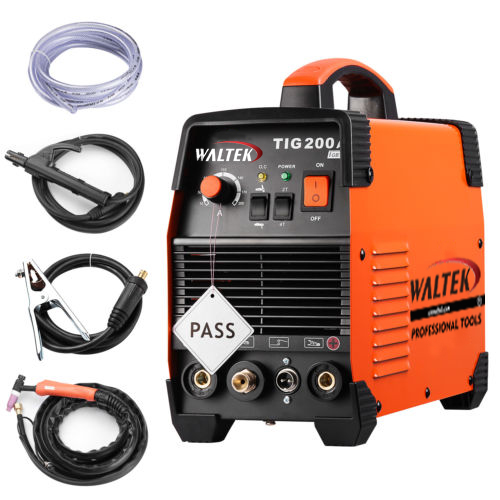

Waltek Brand TIG MMA200 TIG250 MMA250 TIG300 MMA300 Welding Machine
Product Features:
1.Adopting advanced MOS/IGBT inverter technology, small volume, light weight, high efficient performance;
2.Easy to start arc, stable welding current, fast response, and well-formed weld;
3.Heavy load duty cycle, continuous welding;
4.Portable,LCD display,Anti-stick,Hot start,Arc Force,VRD option available;
5.Wide range of working voltage, strong resistance to grid fluctuations.
|
Model |
TIG 200ST |
TIG 250ST |
TIG 300ST |
|
Input voltage(V) |
1PH AC220V±15% |
1PH AC220V±15% |
1PH AC220V±15% |
|
Output current(A) |
20-140 |
20-170 |
20-200 |
|
No-load voltage(V) |
65±5 |
65±5 |
65±5 |
|
Efficiency(%) |
85 |
85 |
85 |
|
Protection grade |
IP21 |
IP21 |
IP21 |
|
Insulation Grade |
F |
F |
F |
|
Gross Weight(KG) |
8 |
9.5 |
10.5 |
|
Dimension of machine(mm) |
375*150*290 |
375*150*290 |
375*150*290 |
|
Dimension of package(mm) |
470*290*330 |
470*290*330 |
470*290*330 |

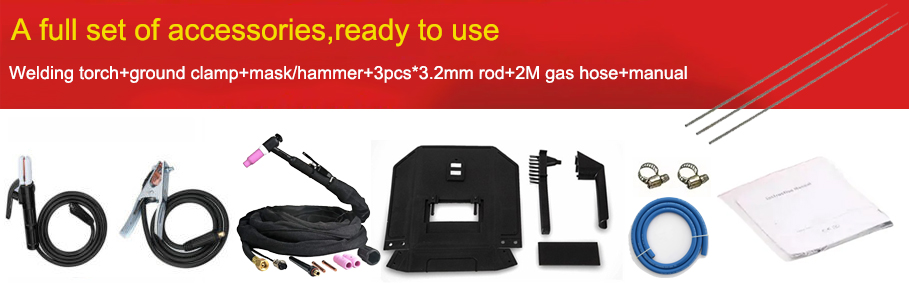

Product Accessories:
- 1x TIG Welder
- 1x 4m TIG Torch
- 1x 1.8m MMA Torch
- 1x 1.5m ground clamp
- 1x Wire Brush & Welder Mask
- 1x User Manual
