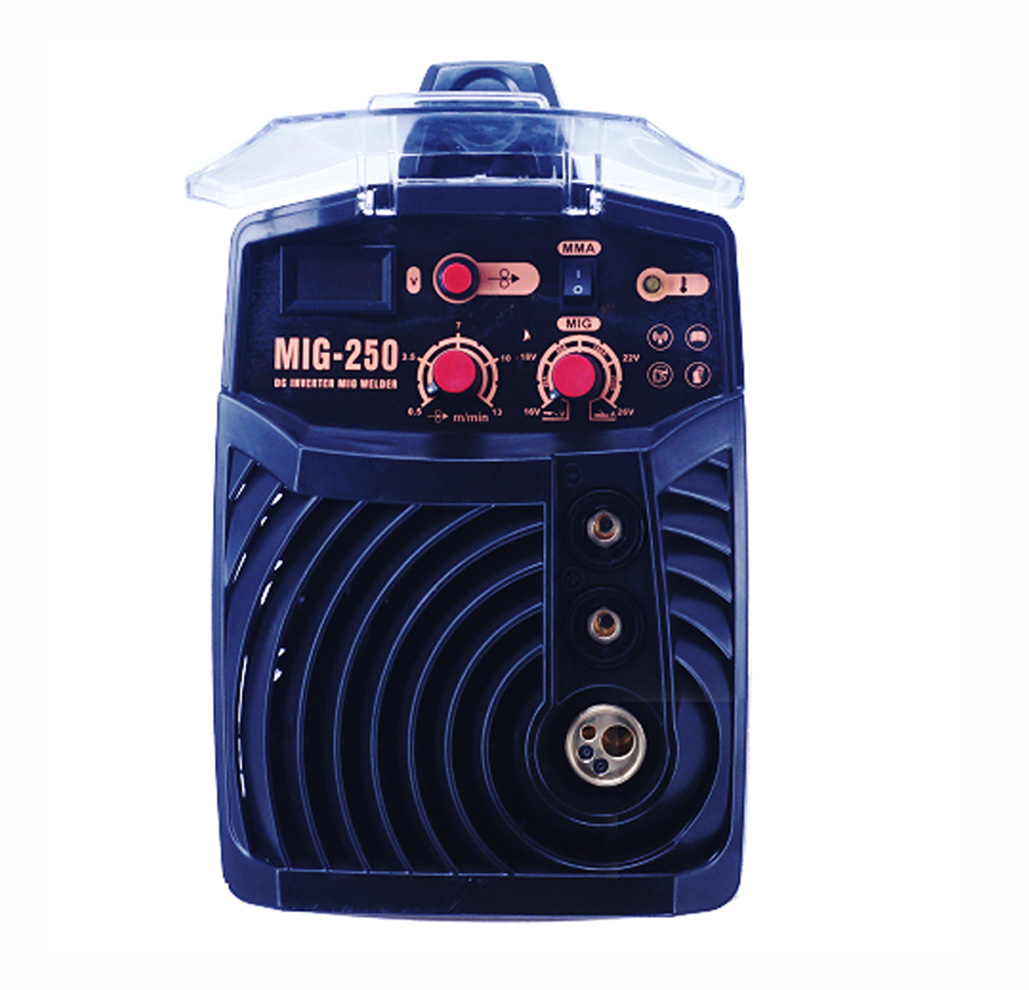

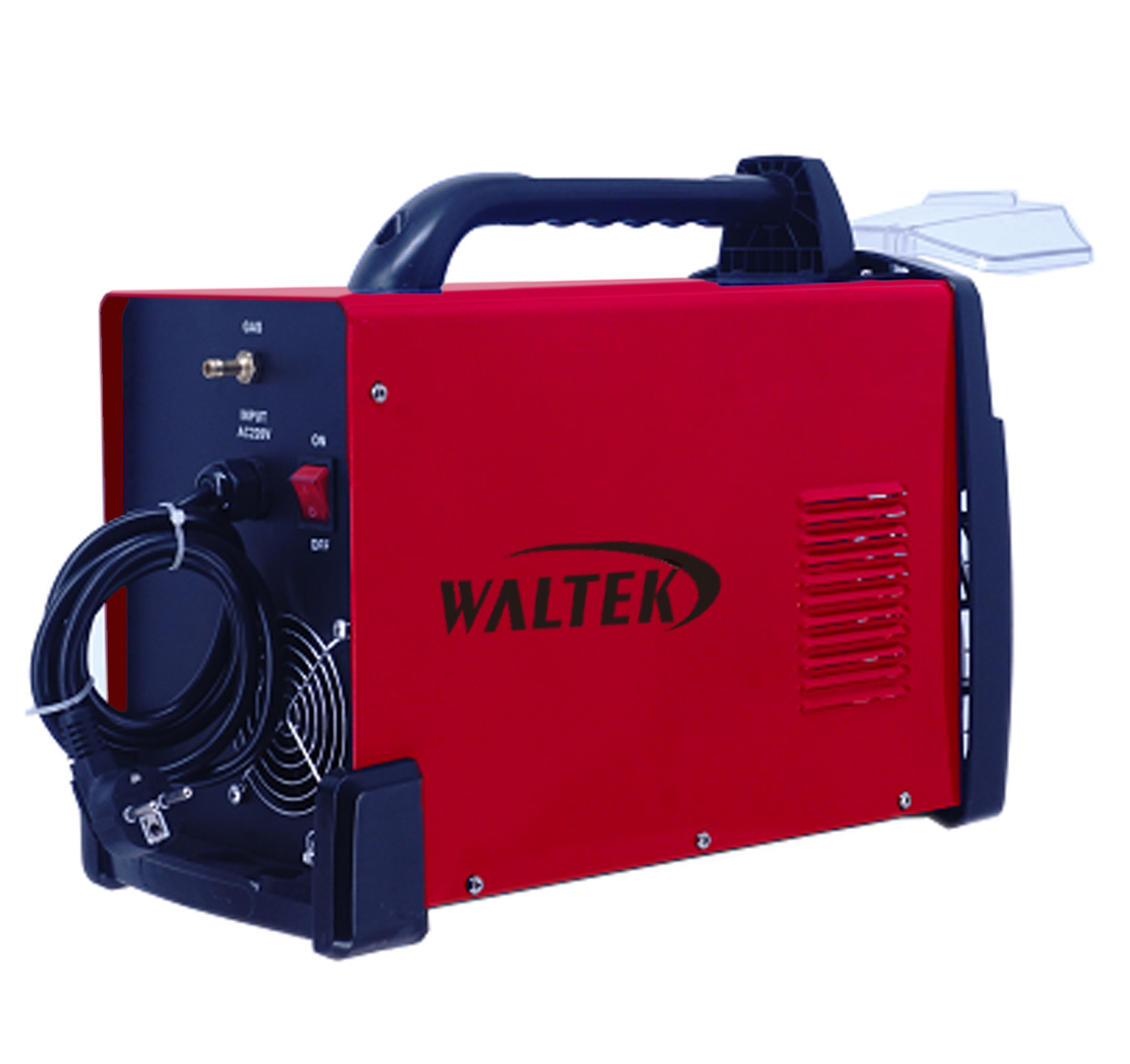

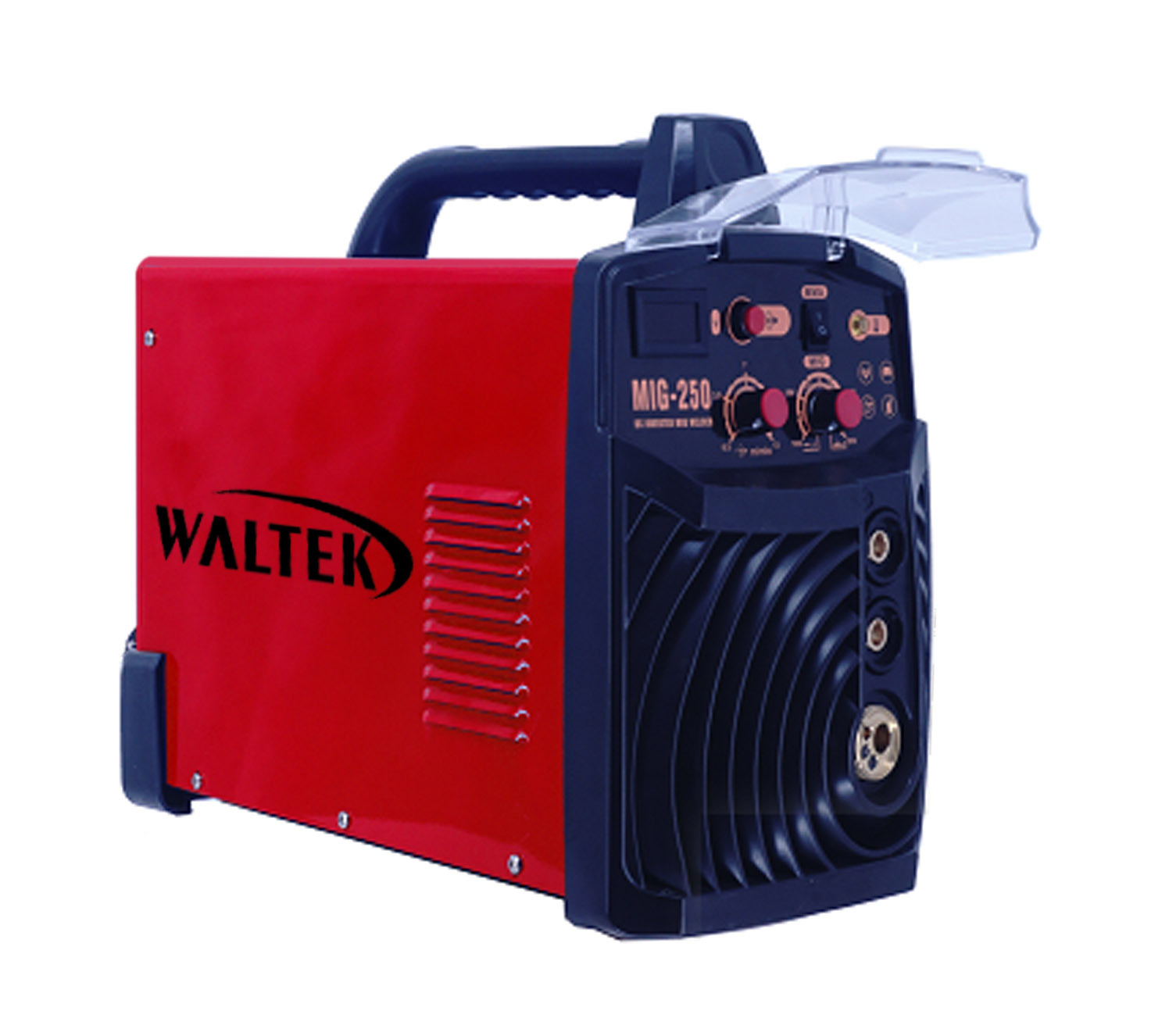

Waltek Welding Machine MIG180/MIG200/MIG250 IGBT Inverter DC Welder
Product Features:
1.MIG & MAG&MMA function in one machine.
2.Adopting advanced IGBT inverter technology, small volume, light weight, high efficient performance;
3.Easy to start arc, stable welding current, fast response, and well-formed weld;
4.Heavy load duty cycle, continuous welding,suitable for Scratch start TIG welding;
5.Portable,LCD display,Anti-stick,Hot start,Arc Force,VRD option available;
6.Wide range of working voltage, strong resistance to grid fluctuations.
7. Automatic over-current, over-heat and over-voltage protection.
8. Can be used with gas or without gas.
9. Applicable for welding low carbon steel and low alloy steel of different thickness.
Specifications Data:
Model
MIG 200P
MIG 250P
MIG 300P
Input voltage(V)
1PH AC220V±15%
1PH AC220V±15%
1PH AC220V±15%
Output current(A)
20-180
20-200
20-250
No-load voltage(V)
65±5
65±5
65±5
Efficiency(%)
85
85
85
Protection grade
IP21
IP21
IP21
Insulation Grade
F
F
F
Gross Weight(KG)
15
16.50
18.00
Dimension of machine(mm)
420*215*330
420*215*330
420*215*330
Dimension of package(mm)
520*305*400
520*305*400
520*305*400

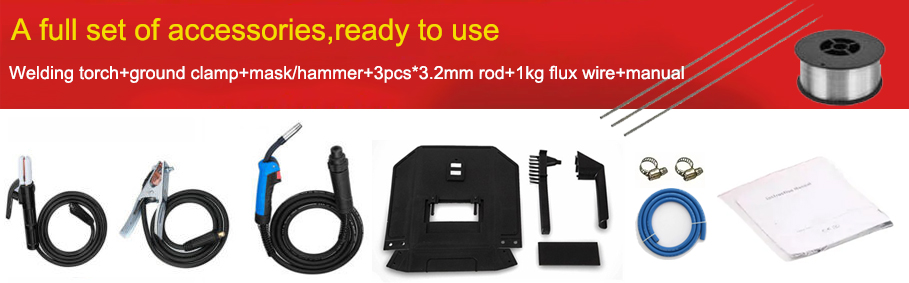

Product Accessories:
- 1x MIG Welder
- 1x 4m MIG Torch-MB15
- 1x 1.8m MMA Torch
- 1x 1.5m ground clamp
- 1x Wire Brush & Welder Mask&2m gas hose
- 1x User Manual
