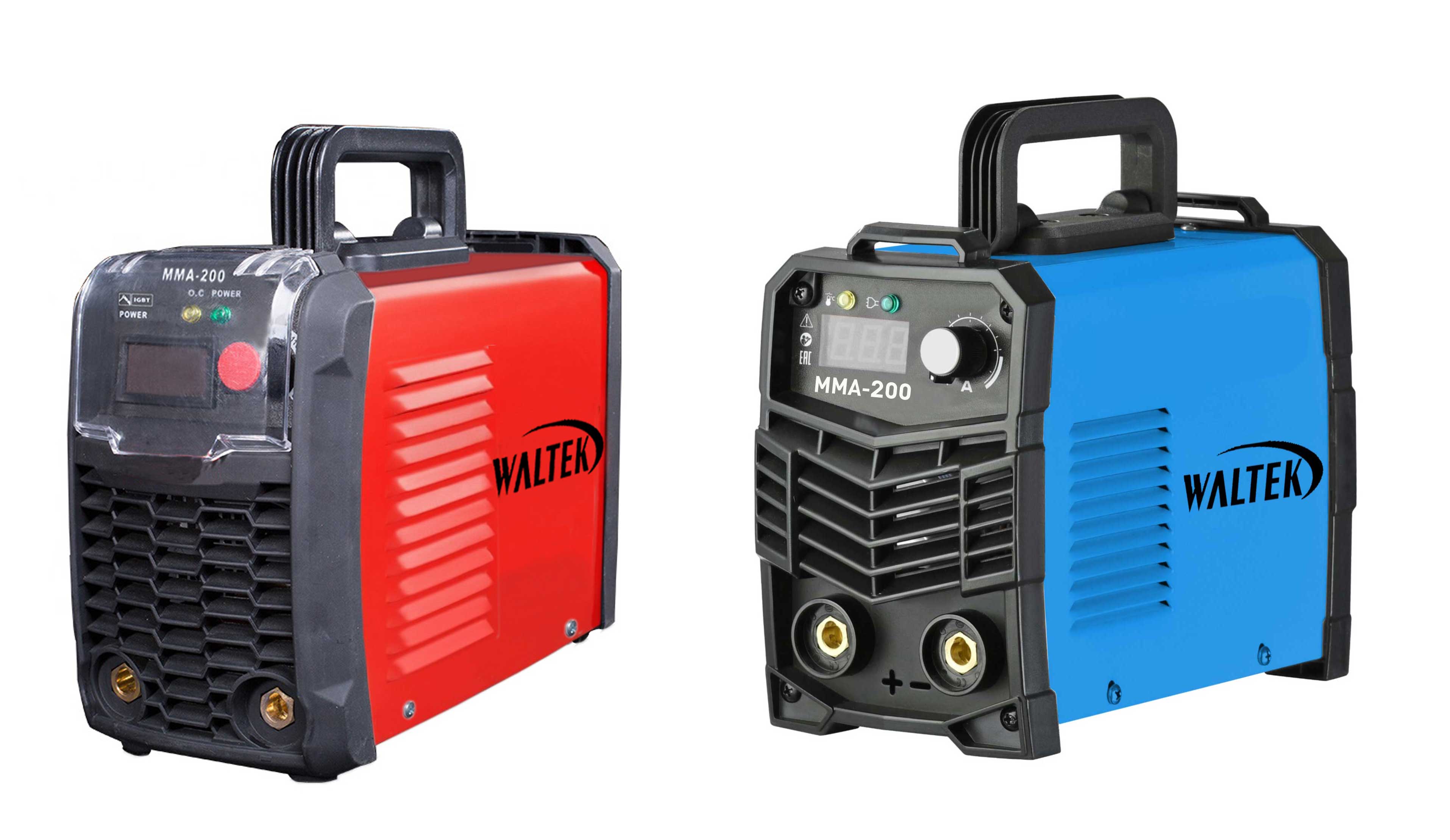

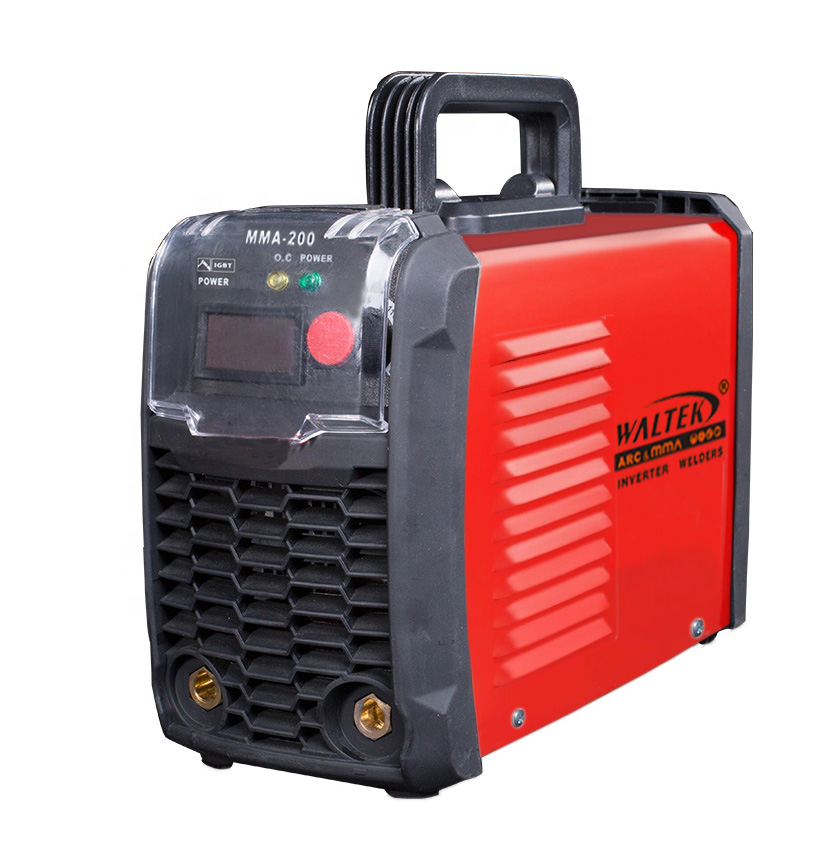

Waltek MMA 200Amp ARC 250P Stick IGBT Inverter DC Welding Machine
MMA-200P MMA-200PL
Product Features:
1.Adopting advanced MOS/IGBT inverter technology, small volume, light weight, high efficient performance;
2.Easy to start arc, stable welding current, fast response, and well-formed weld;
3.Heavy load duty cycle, continuous welding,suitable for Scratch start TIG welding;
4.Portable,LCD display,Anti-stick,Hot start,Arc Force,VRD option available;
5.Wide range of working voltage, strong resistance to grid fluctuations.
|
Model |
MMA 200P |
MMA 250P |
MMA300P |
|
Input voltage(V) |
1PH AC220V±15% |
1PH AC220V±15% |
1PH AC220V±15% |
|
Output current(A) |
20-140 |
20-170 |
20-200 |
|
No-load voltage(V) |
65±5 |
65±5 |
65±5 |
|
Efficiency(%) |
85 |
85 |
85 |
|
Protection grade |
IP21 |
IP21 |
IP21 |
|
Insulation Grade |
F |
F |
F |
|
Gross Weight(KG) |
6.5 |
8.0 |
9.0 |
|
Dimension of machine(mm) |
300*120*200 |
300*120*200 |
370*160*250 |
|
Dimension of package(mm) |
355*230*325 |
355*230*325 |
490*250*330 |
Product Accessories:
- 1x MMA Welder
- 1x 1.2m MMA Torch
- 1x 1.8m Torch clamp
- 1x Wire Brush & Welder Mask
- 1x User Manual
