Home » Co2 36V/220V Heater and Argon regulator with folwmeter
Detailed description

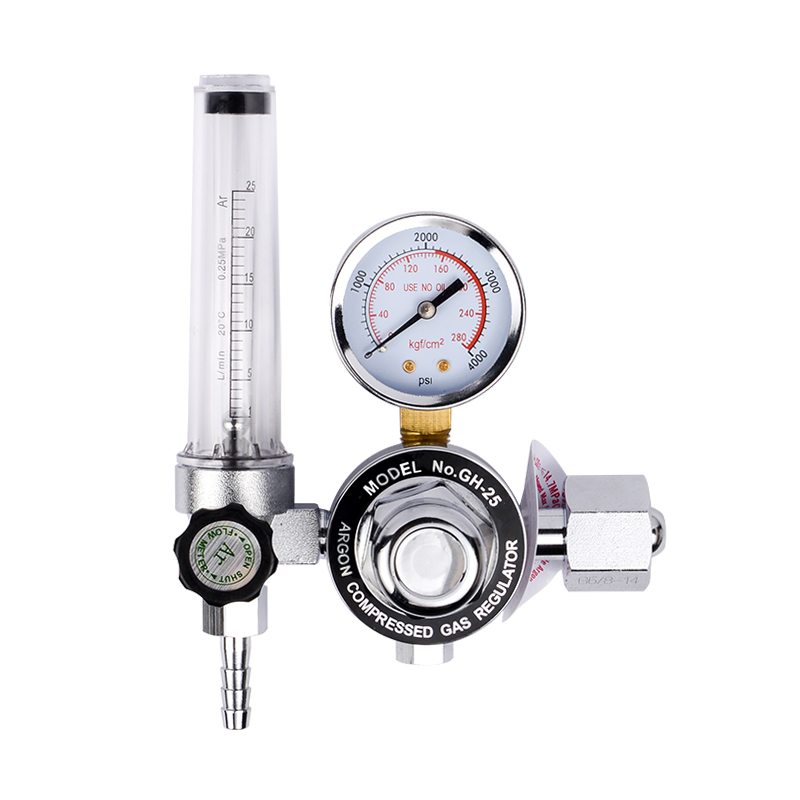

CO2 Nitrogen argon regulator with folwmeter 19T series Dual-Stage Flowmeter Regulator is designed for MIG & TIG applications and provide accurate regulation of gas flow.
* Double stage construction
* Calibrated for Argon, Helium and Carbon Dioxide gases
* 2" high-pressure gauge for easy reading
* Meat the UL requirement
* Weight: 1.4KG
* Calibrated for Argon, Helium and Carbon Dioxide gases
* 2" high-pressure gauge for easy reading
* Meat the UL requirement
* Weight: 1.4KG

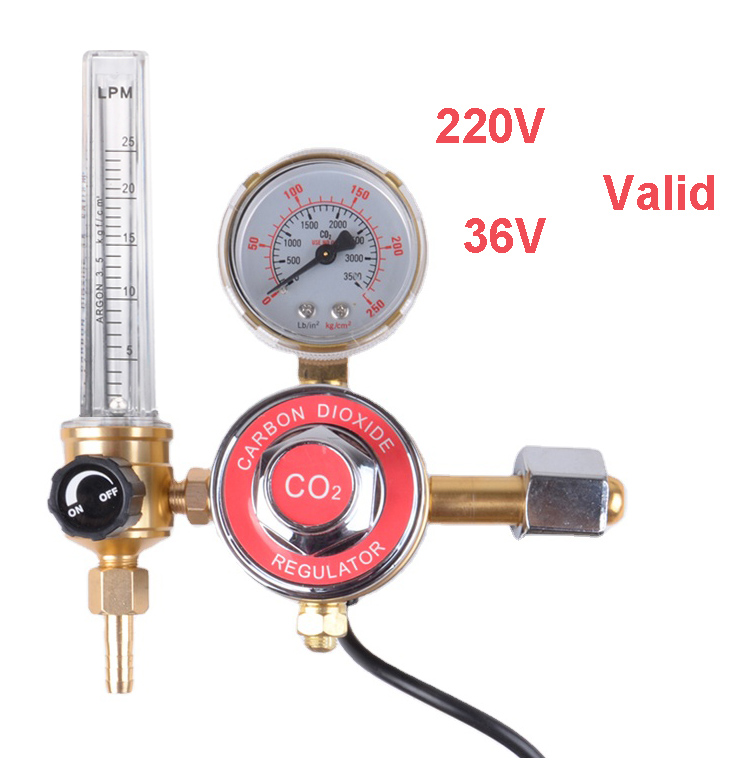

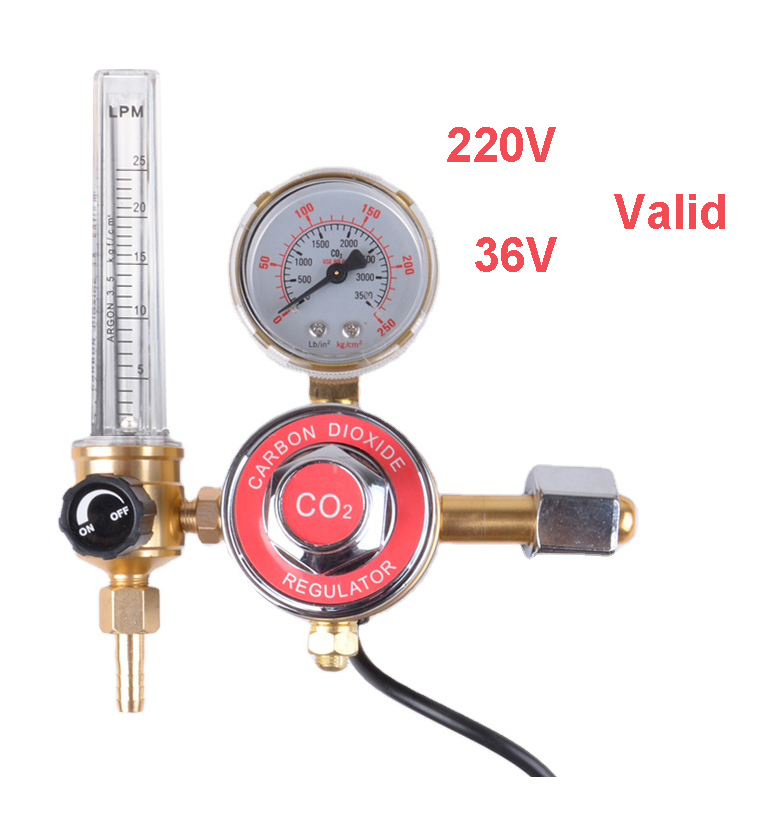

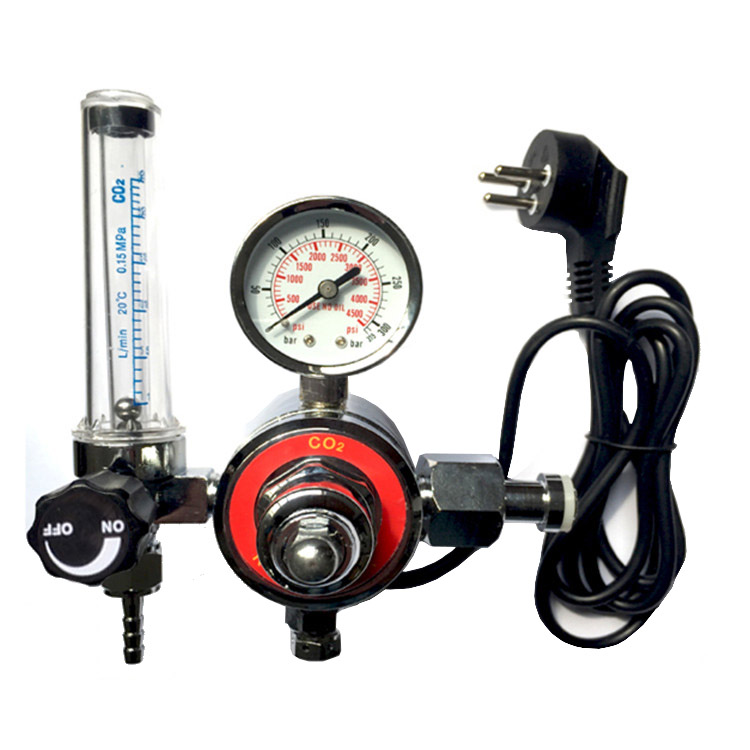

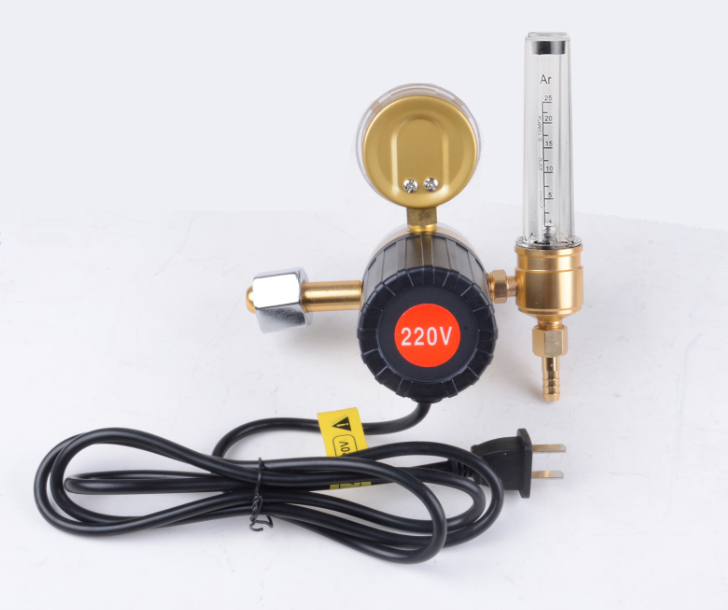

220V POWER SUPPLY:

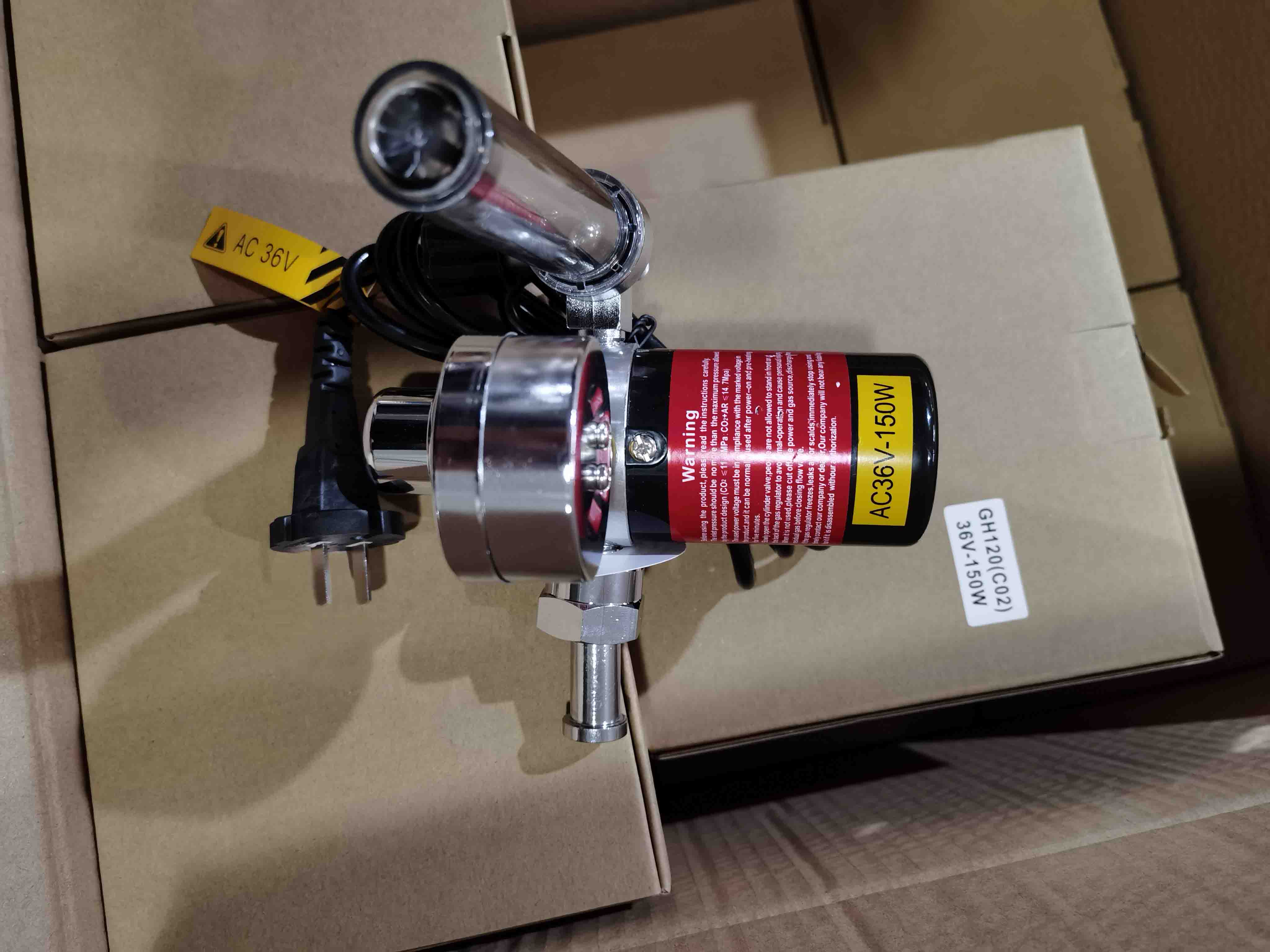

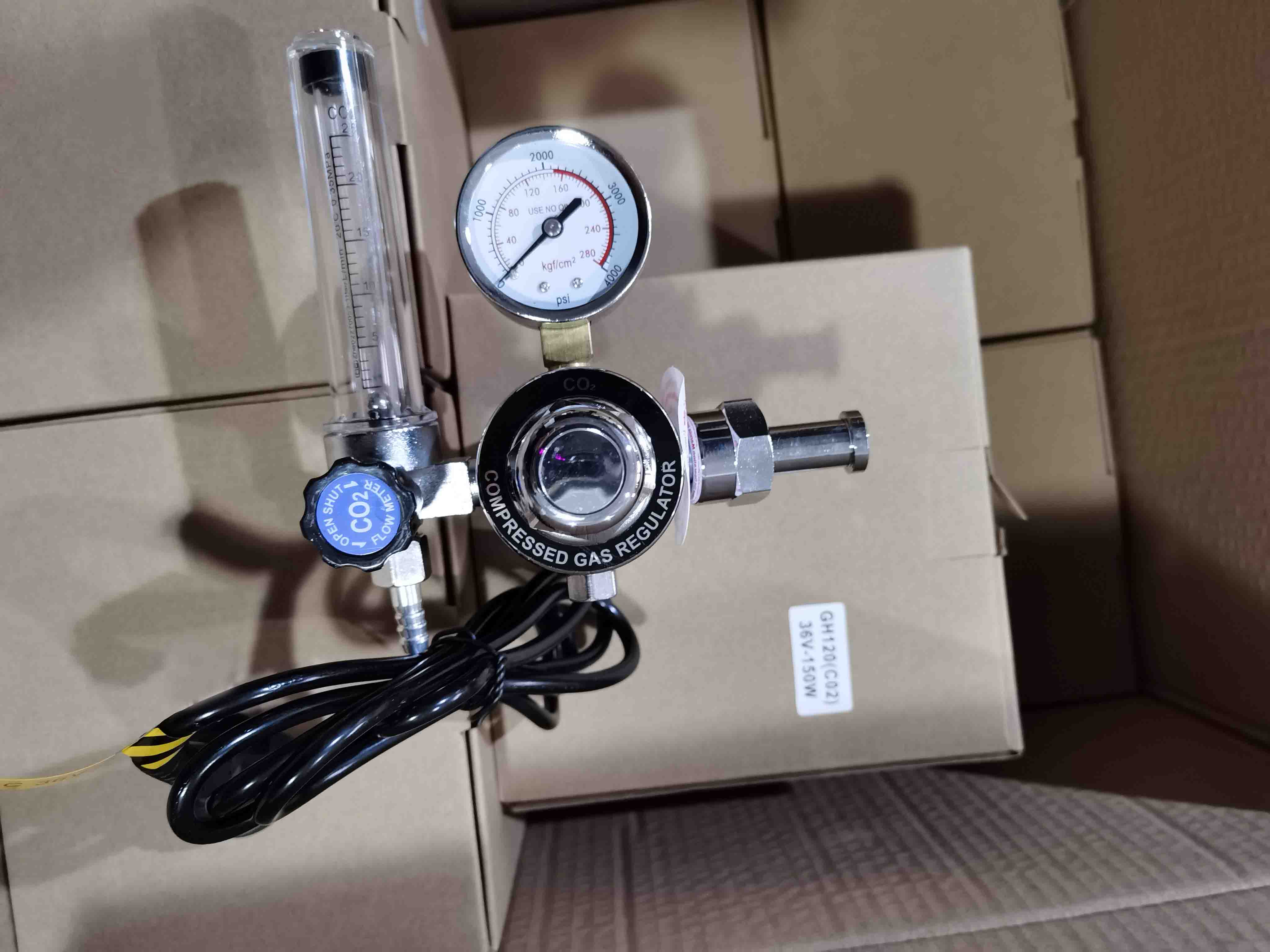

36V POWER SUPPLY:
Detail Specification:
|
Product Name
|
Co2 Regulator with heater or without heater and Valve With Flowing meter
|
|
Material
|
Copper
|
|
Suitable gas
|
Co2
|
|
Application
|
For Welding Kit and Outfit
|
|
Size
|
190mm*150mm*80mm
|
|
Weight
|
1.4kgs with heater+power cable;without heater 0.8kg
|
|
Feature |
*All copper casting;
*maximum strength, serviceability and safety;
*Cover of pressure gauge is made of soft plastic against damage;
*Easy to use;
*High quality, cost-effective product.
|
|
Model Number
|
Gas Service
|
Outlet Flowmeter
|
Inlet gauge
|
Inlet Connection
|
Outlet connection
|
|
GH19RS-25L
|
CO2
|
0-25LPM CO2
|
25 MPa
|
G5/8〞-RH(F)
|
M16-1.5RH(M)
|
|
GH19RC-25L
|
Ar
|
0-25LPM ARGON
|
25 MPa
|
G5/8〞-RH(F)
|
M16-1.5RH(M)
|
|
|
|
|
Product Name
|
Argon Regulator and Valve With Flowing meter
|
|
Material
|
Stainless steel
|
|
Suitable gas
|
Argon
|
|
Application
|
For Welding Kit and Outfit
|
|
Size
|
190mm*150mm*80mm
|
|
Weight
|
0.8kg
|
|
Feature |
*All Stainless Steel;
*maximum strength, serviceability and safety;
*Cover of pressure gauge is made of soft plastic against damage;
*Easy to use;
*High quality, cost-effective product.
|
Materials
Body and housing cap are machined from class"A" Brass bar stock
Sintered bronze inlet filter
Stem type seat assembly for more reliable seating Application industrial and laboratory applications
Non-corrosive gases
Hydrocarbon service
