Application:
For water supply,clean liquids,without abrasives,which are non-aggressive to the pump materials;
For domestic use,for civil and industrial application,for garden use and irrigation.
Pump:
Q max: 4.0(m³/h)
Max. fluid temperature:-20℃ to 100℃
Ambient temperature up to +40℃
Max. Working pressure 10bar
Continuous duty
Motor:
Power: Single phase: 0.75-2.2kw 1PH 220-240v or 3PH 380V-415v
Insulation class: F
Protection grade: IP55
Frequency: 50Hz or 60Hz
• Specification Data:
Model
H.Max(m)
Q.Max(m3/h)
Power(KW)
Speed(r/min)
CNP2-20
14
2
0.37
2900
CNP2-30
21
2
0.55
2900
CNP2-40
28
2
0.55
2900
CNP2-50
35
2
0.55
2900
CNP2-60
42
2
0.75
2900
CNP4-20
15
4
0.55
2900
CNP4-30
22
4
0.75
2900
CNP4-40
30
4
0.75
2900
CNP8-10
8.5
8
0.75
2900
CNP8-20
17
8
0.75
2900
CNP8-30
25.5
8
1.1
2900
CNP8-40
34
8
1.5
2900
CNP8-50
42.5
8
2.2
2900
CNP12-10
9.5
12
0.75
2900
CNP12-20
19.5
12
1.2
2900
CNP12-30
29.5
12
1.8
2900
CNP12-40
39.5
12
2.4
2900
CNP12-50
50
12
3
2900
CNP16-10
10
16
1.1
2900
CNP16-20
21
16
2.2
2900
CNP16-30
32
16
3
2900
CNP20-10
9.5
20
1.1
2900
CNP20-20
21
20
2.2
2900
CNP20-30
33
20
4
2900

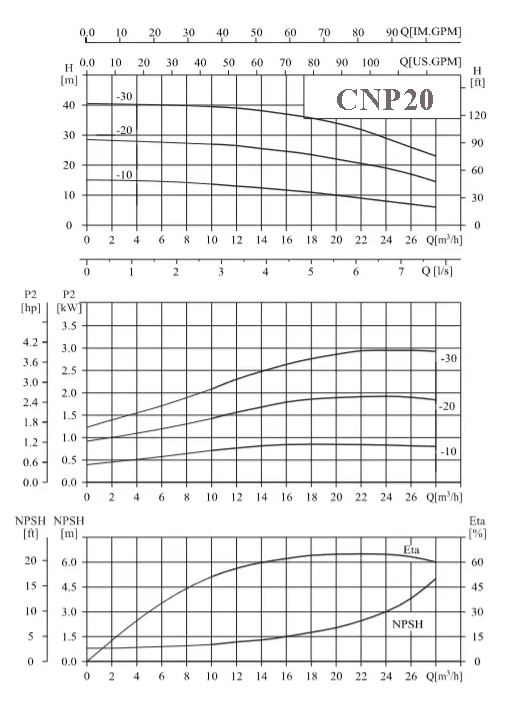

• PERFORMANCE CHART AT RMP=2900r/min Outlet:G1"

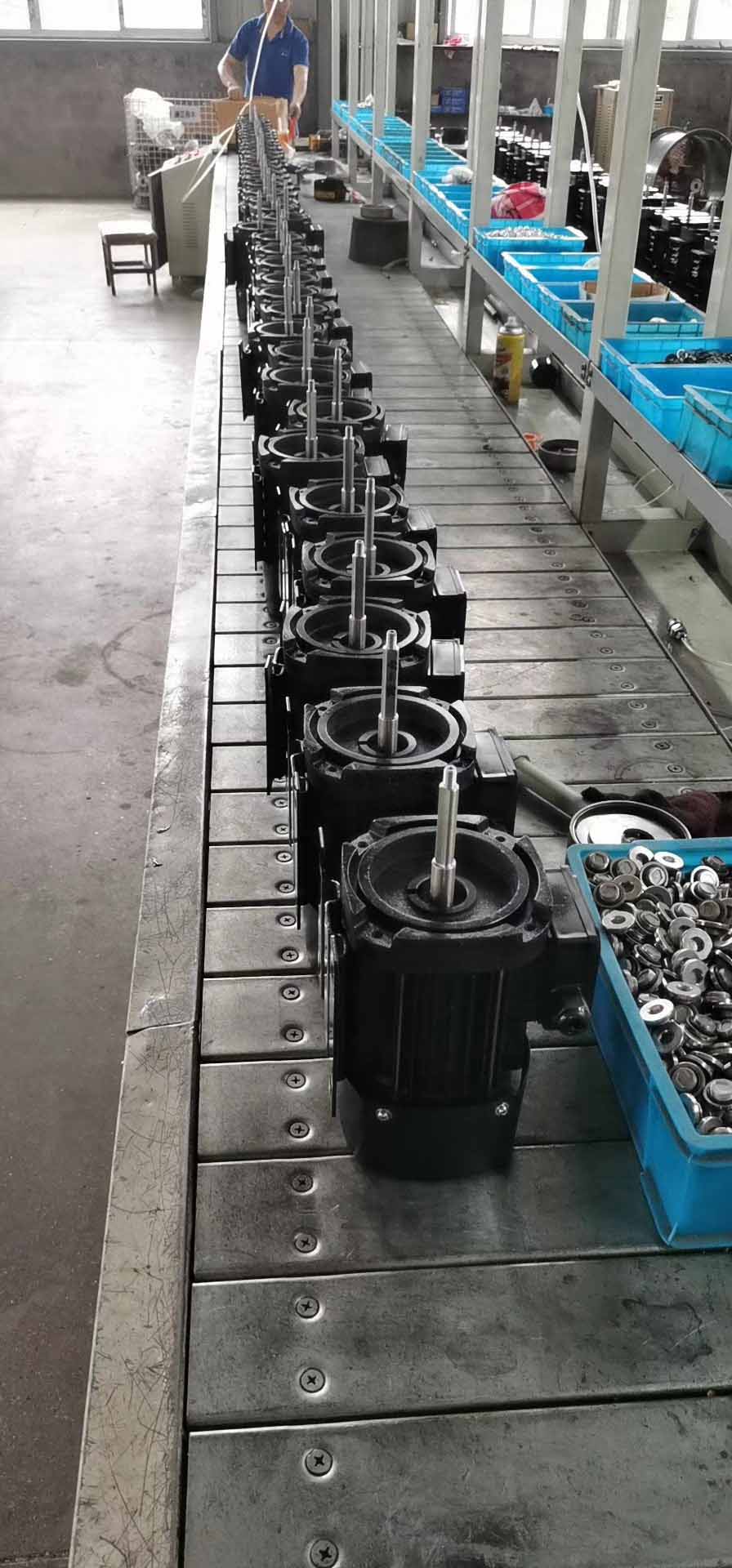

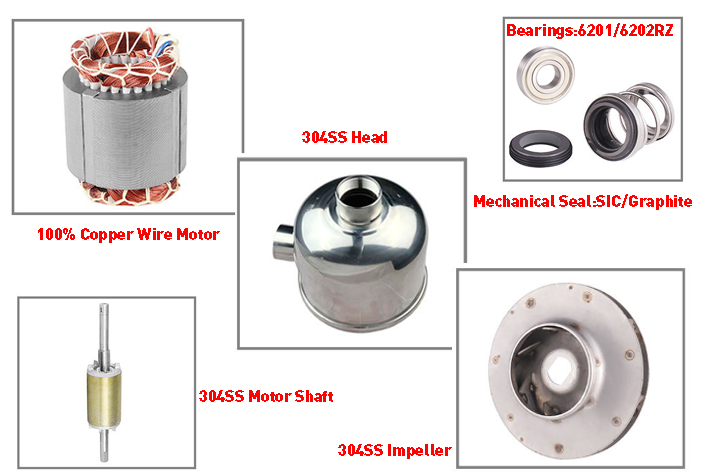

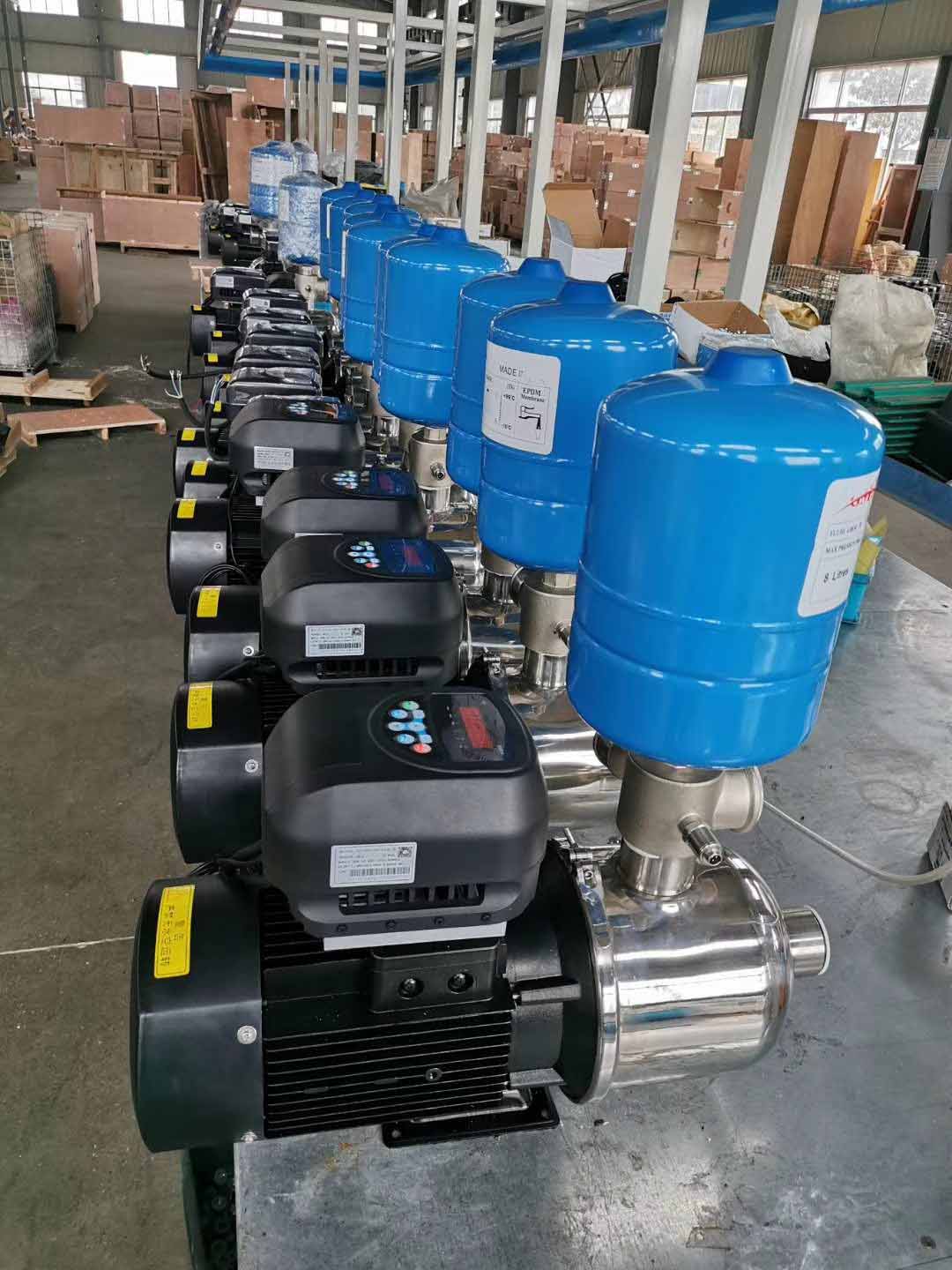

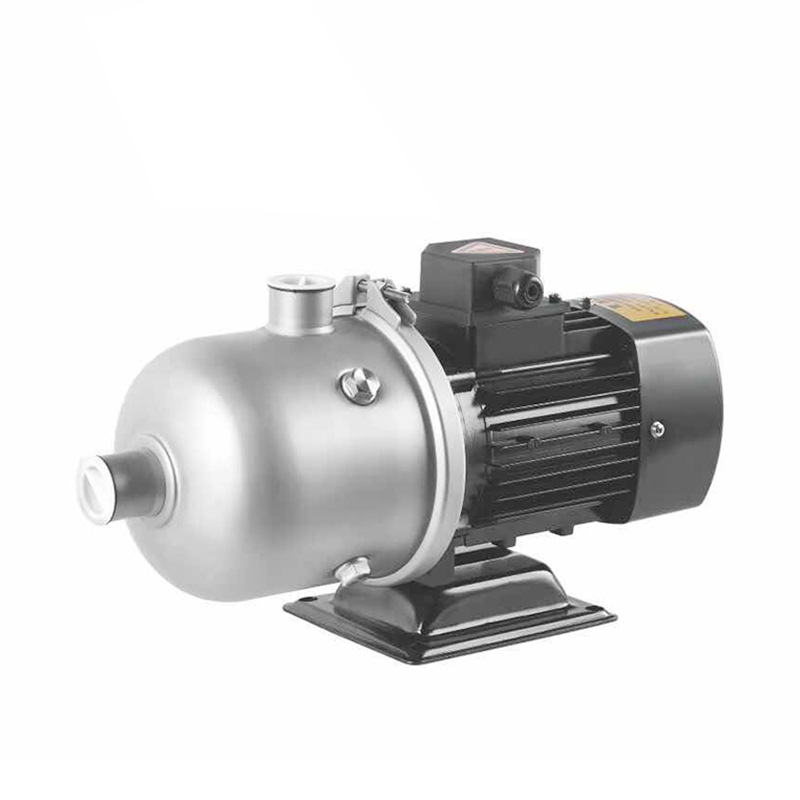

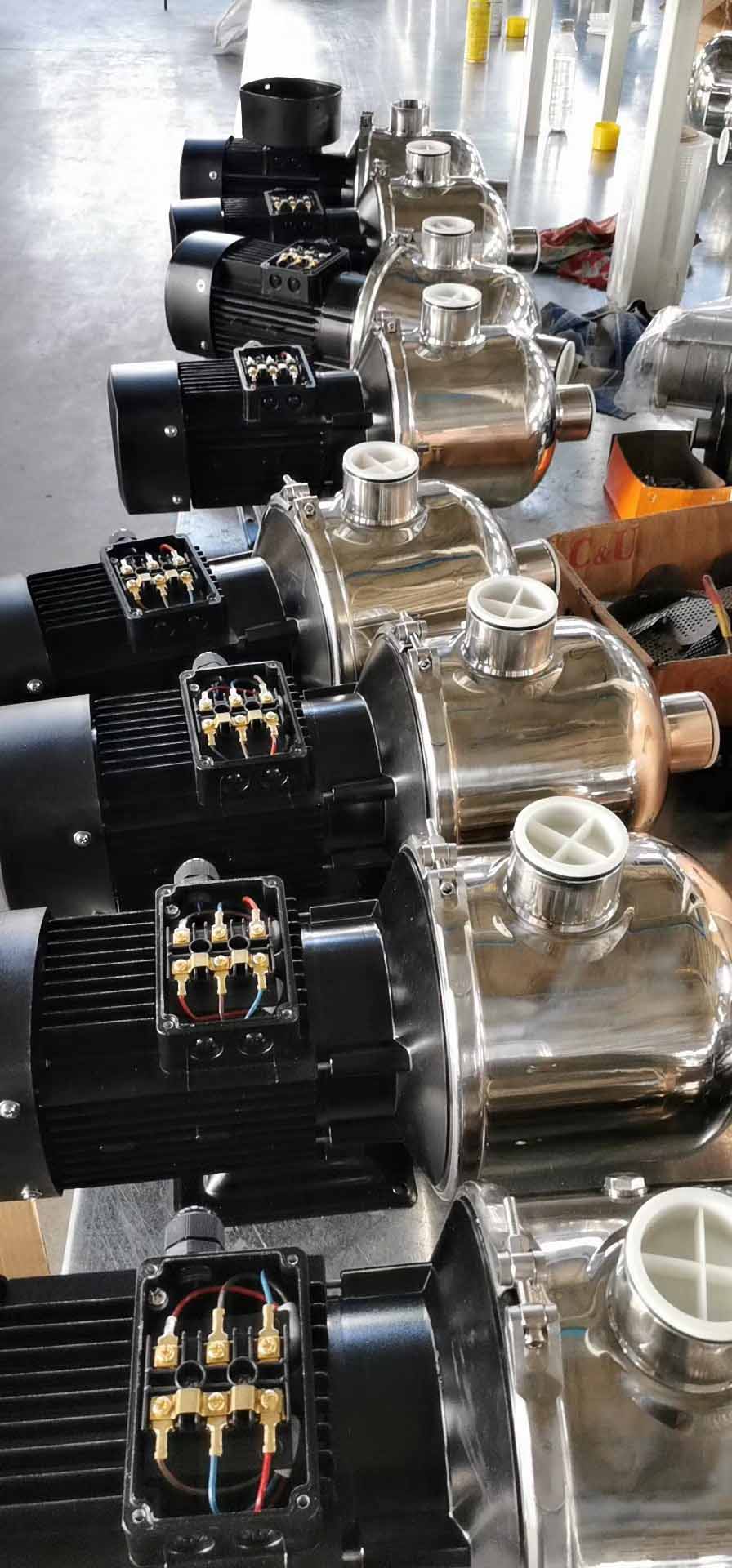

• PRODUCT IMAGES:
