Home » Air Pressure Gauge PG50
Detailed description
Specifications Data:
| Product Name: |

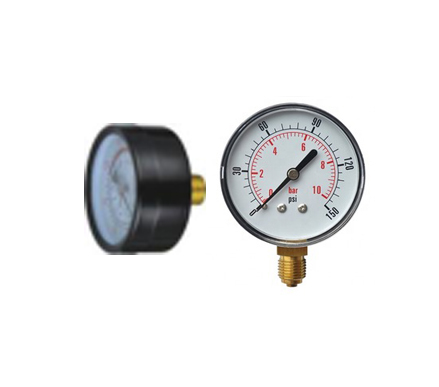

General Type Plastic Body Air Pressure Gauge PG50 |
| Normal Size: |
1.5",2.0"(50mm),2.5"(63mm),3",4",6" |
| Pressure Range: | -1Bar(-30"Hg)-0-1000Bar(15000Psi) |
| Accuracy: | ±1.6% |
| Operating temperature: | -20°C to +60°C |
| Case: | Plastic |
| Bezel: | none |
| Bourdon tube: |
Copper alloy or Stainless steel <100Bar: C-Type ≥100Bar: Helical Type |
| Connection: | Brass |
| Movement: |
Brass |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Plastic |
| Thread: |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. |
