Pressure Switch DSK-05
  • Pressure Switch DSK-05
  • Pressure Switch DSK-05

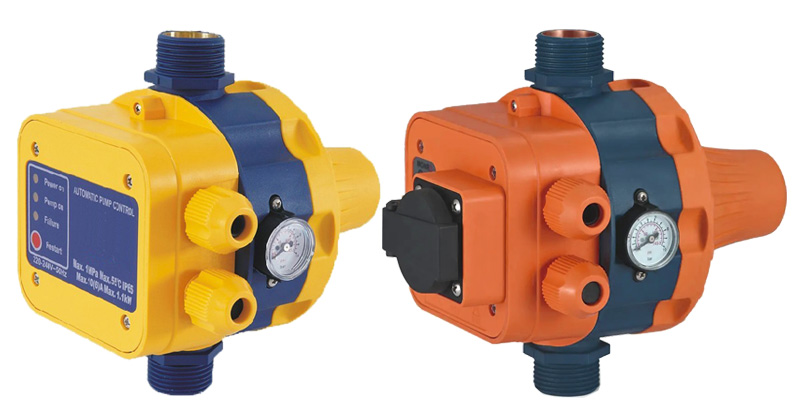

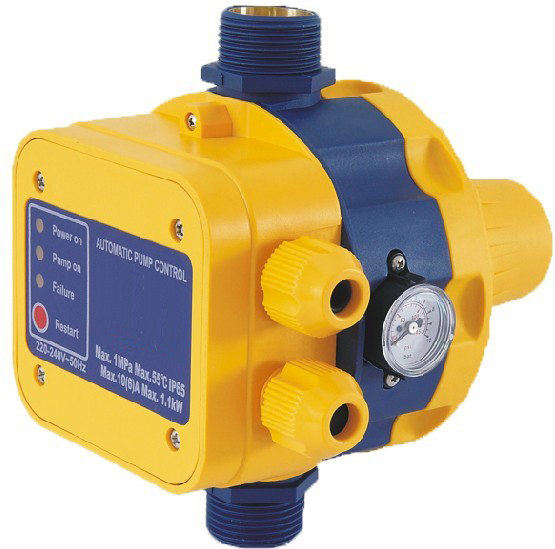

Pressure Switch DSK-05

Pressure Switch DSK-05
Detailed description

Waltek Pressure Swtich DSK-05 Water Pump Controller PC-05 EPC-05, 110V/220V Automatic Pump Control Pressure Switch Electronic Switch Controller for Well Pump Self priming pump, Jet Pump, Garden Pump 10 Bar


About this item

  • Multiple Functions: The Automatic Pump Controller has been designed with various functions, such as starting and stopping the pump automatically, examining the water level, and stopping the pump in case of a water shortage. It can replace the traditional pump control system composed of a pressure switch, pressure , and check valve, making it easier to use
  • No Requirement of Pressure : The automatic pump control operates without requiring a pressure , which provides a more organized and efficient water supply system. Additionally, it automatically stops if no water is in the pump, which helps to prevent damage to the pump
  • Efficient Input Voltage and Current: The pump controller works with input voltage of 110V or 220V, maximum pump HP of 1.1KW, and maximum current of 10A, providing an efficient energy output
  • High Power Supply and Pressure Handling Capacity: The water pressure switch has a power supply of 100-120V or 200-240V, a frequency of 50/60HZ, a current of 30A, and a working bar pressure of 10 bar, making it capable of handling heavy-duty industrial and agricultural applications
  • Versatile Applications: The water pressure switch can be used with various types of pumps, including self-priming pumps, jet pumps, garden pumps, clarified water pumps, and centrifugal pumps, among others. This makes it ideal for a broad range of applications.

Features:

Automatic start and stop the pump when tap open/close.

Reduce water hammer effects.

Simple control to maintains constant pressure during operation.

Dry running protection to protect motor, extra pump life.

In order to avoid the pump on/off & pressure high/low problems.



Specifications:
Condition: 100% Brand New
Material: Plastic, Metal
Color: As Picture Shown
Voltage: 220~240V or 100-130V
Frequency: 50Hz
Max. Power: 1.1W
Max. Current: 10A
Max. Operating Pressure: 1MPa(10bar)
Protective Grade: IP65
Max. Operating Temperature:0~ 100℃
Water Inlet/Outlet Thread Diameter: 32mm
Size: Approx. 180 * 180mm
Package:12PCS/Carton

Diamension:61*47.5*21cm

Weight: Approx. 13/12.50kgs


Package Included:


1 * Water Pump Pressure Switch
