About this item

• Multiple Functions: The Automatic Pump Controller has been designed with various functions, such as starting and stopping the pump automatically, examining the water level, and stopping the pump in case of a water shortage. It can replace the traditional pump control system composed of a pressure switch, pressure , and check valve, making it easier to use
• No Requirement of Pressure : The automatic pump control operates without requiring a pressure , which provides a more organized and efficient water supply system. Additionally, it automatically stops if no water is in the pump, which helps to prevent damage to the pump
• Efficient Input Voltage and Current: The pump controller works with input voltage of 110V or 220V, maximum pump HP of 1.1KW, and maximum current of 10A, providing an efficient energy output
• High Power Supply and Pressure Handling Capacity: The water pressure switch has a power supply of 100-120V or 200-240V, a frequency of 50/60HZ, a current of 30A, and a working bar pressure of 10 bar, making it capable of handling heavy-duty industrial and agricultural applications
• Versatile Applications: The water pressure switch can be used with various types of pumps, including self-priming pumps, jet pumps, garden pumps, clarified water pumps, and centrifugal pumps, among others. This makes it ideal for a broad range of applications.

Description:
The electric switch is used in water systems, start and stop the pump automatically. Examine the water automatically, stop the pump in the case of water shortage, protect the pump from damage caused by dry-running. Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve etc.

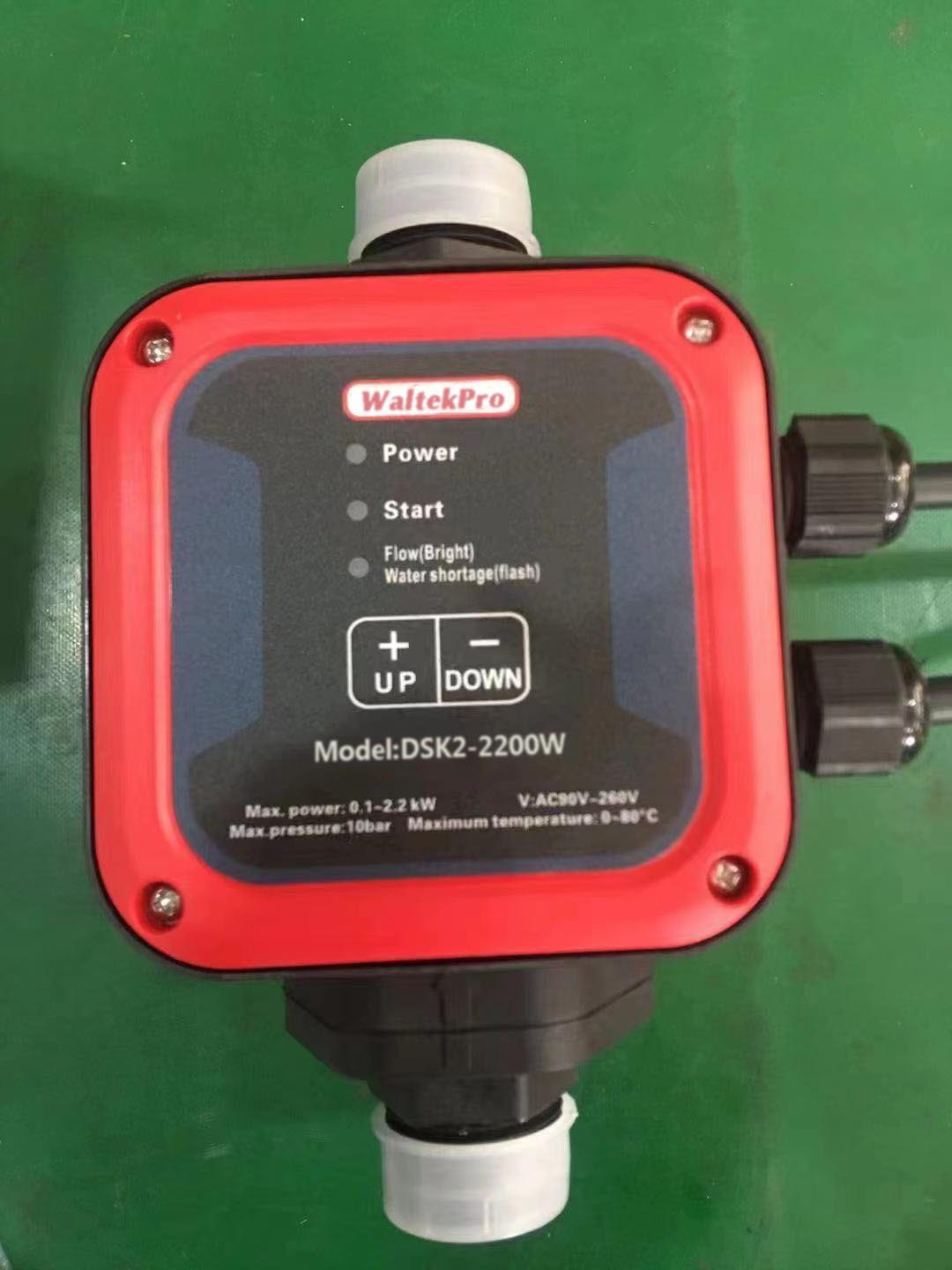

Model No.:DSK2-2200W Intelligent Pressure Adjustable
1. Intelligent applications without the need for manual intervention in regulation;
2. Regularly replenish water to the water tower;
3. Water shortage protection (3 minutes and 20 seconds) and automatic monitoring of incoming water self start.
4. There will be no frequent unplugging and plugging in water absorption applications.
5. Wide voltage: 90V-260V.
6. Dual frequency: 50/60Hz
7. Maximum current: 30A 2200W(maximum application power within 2200W), to protect the motor from burning out due to frequent power calls and power outages (instantaneous starting current first passes through the controller to protect the water pump motor)
8. Protection level: IP65, durable; 9. Pressure resistance: 10 kilograms;
10. Applicable to start-up pressure of 0.1-5bar

Waltek Pressure Swtich DSK3-2200W Hot and Cool Water Pump Controller, Intelligent pump controller,wide voltage:90-260V Automatic Pump Controller Pressure Switch for deep Well Pump,Self priming pump, Jet Pump, Hot water Circulation Pump,Garden Pump 10 Bar

About this item

Applicable to intelligent AI pressure control of pump power:0.1-2.2kw;Input voltage:90-260Vac 50/60Hz;Liquid temperature:0~100℃；Max.pressure:10bar;Starting pressure:0-10bar;Waterproof  level:IP65;Suitable for depth:0~100m;Inlet/Outlet thread:G 1";Timing water tower&Watershortage protection&Auto-adaptable control system(automatic sensing and selection starting pressure according to different floors without manual setting);Suitable for various water pump,Such as Surface pump,Submersible pump(ac or dc solar deep well pump)etc.

• Multiple Functions: The Automatic Pump Controller has been designed with various functions, such as starting and stopping the pump automatically, examining the water level, and stopping the pump in case of a water shortage. It can replace the traditional pump control system composed of a pressure switch, pressure , and check valve, making it easier to use
• No Requirement of Pressure : The automatic pump control operates without requiring a pressure , which provides a more organized and efficient water supply system. Additionally, it automatically stops if no water is in the pump, which helps to prevent damage to the pump
• Efficient Input Voltage and Current: The pump controller works with input voltage of 110V or 220V, maximum pump HP of 1.1KW, and maximum current of 10A, providing an efficient energy output
• High Power Supply and Pressure Handling Capacity: The water pressure switch has a power supply of 100-120V or 200-240V, a frequency of 50/60HZ, a current of 30A, and a working bar pressure of 10 bar, making it capable of handling heavy-duty industrial and agricultural applications
• Versatile Applications: The water pressure switch can be used with various types of pumps, including self-priming pumps, jet pumps, garden pumps, clarified water pumps, and centrifugal pumps, among others. This makes it ideal for a broad range of applications.

Features:

Automatic start and stop the pump when tap open/close.

Reduce water hammer effects.

Simple control to maintains constant pressure during operation.

Dry running protection to protect motor, extra pump life.

In order to avoid the pump on/off & pressure high/low problems.
